• 固定電気ポータブルシザーリフトテーブル-リフトテーブル
    商品番号: 13449661
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: weiying モデル番号: sjg
    重量: 1240キログラム 評価される積載量: 200キログラム 上昇のドライブ/作動: 油圧
    認証: iso、ce、sgs、ce、iso、bv、sgs 上昇のメカニズム: 上昇を切りなさい 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため
    テーブルのサイズ: 1800*1200ミリメートル 全体寸法: 2300*1500*1420ミリメートル 保証: 一年
    Min.持ち上がる高さ: 1メートル 最高。 持ち上がる高さ: 12メートル 力: 3〜5キロワット
    ブランド: weiying タイプ: sjg リフト高さ: 0〜10メートル
    素材: 高強度鋼 緊急lowing値: 付属 色: 要件ごと
    電圧: 220ボルト、380ボルト、440ボルト カスタムデザイン: 利用可能 製品: 固定電気ポータブルシザーリフトテーブル
    パッケージ: 木製ケース

    包装

    包装: 木製ケース/プラスチックフィルム用ポータブルシザーリフトテーブル

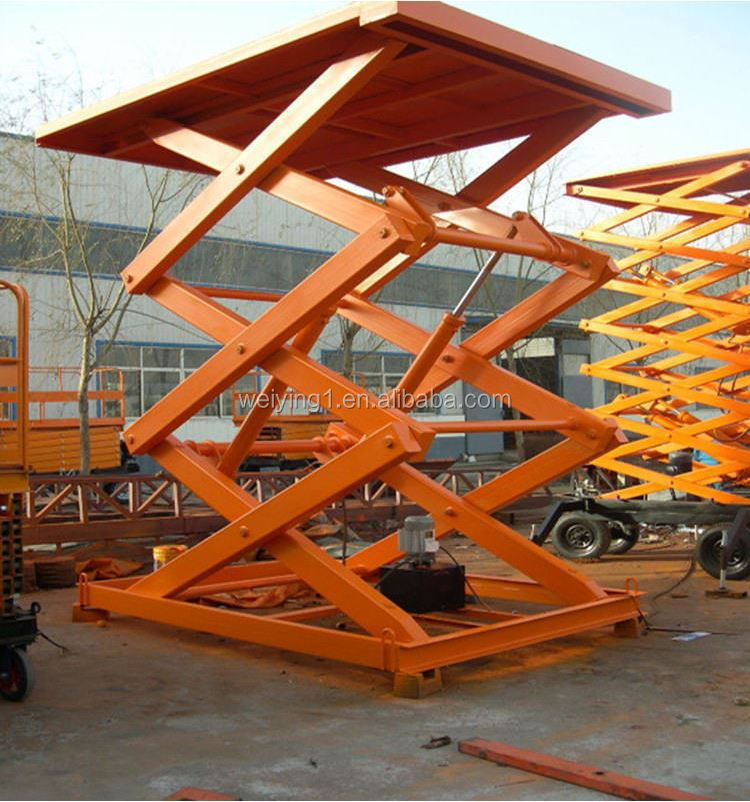

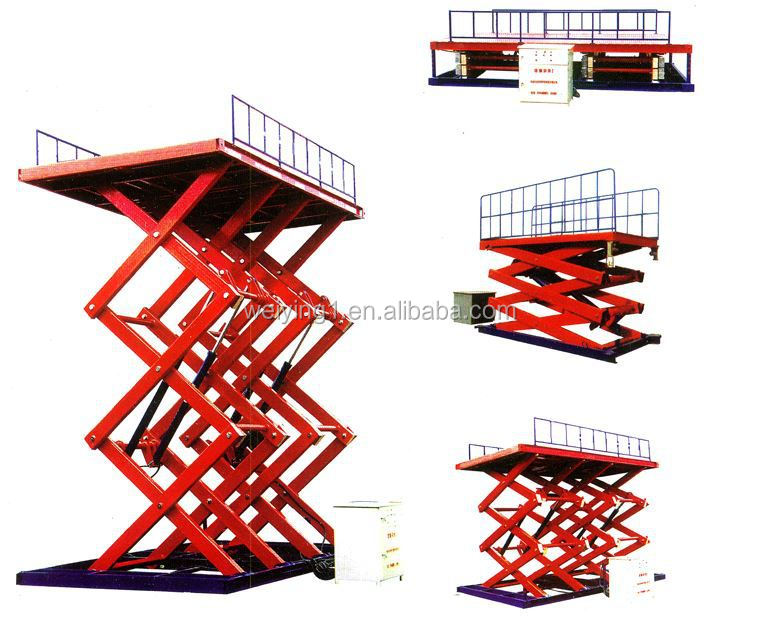

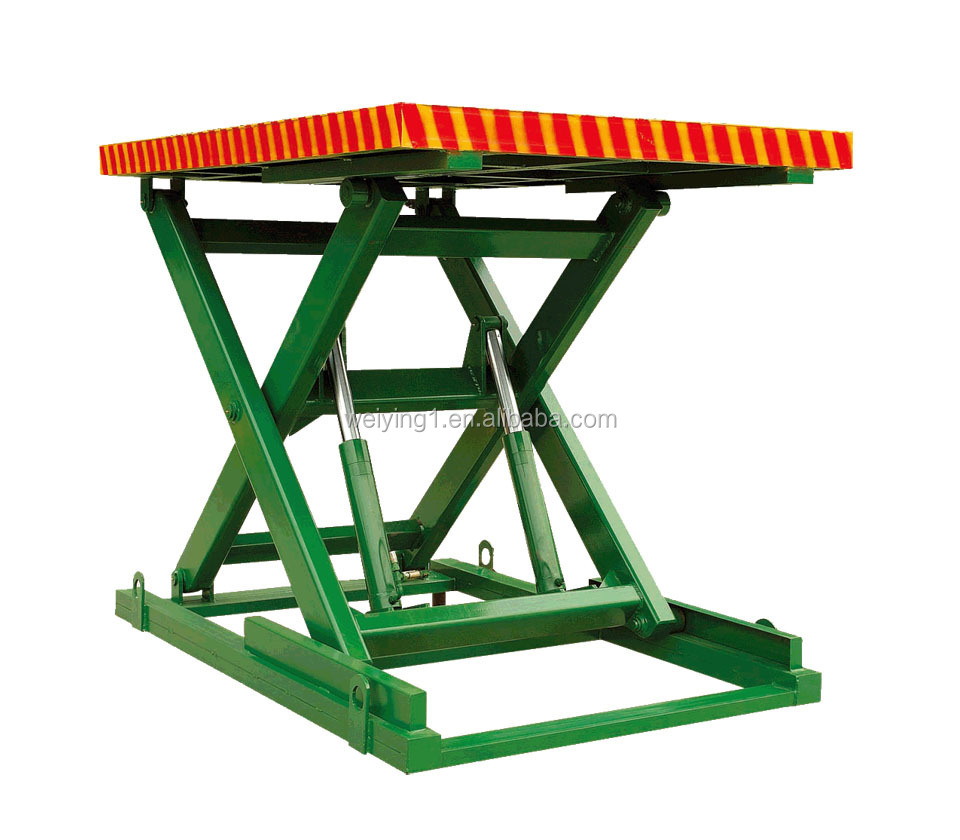

      fixed electrical portable scissor lift table

    Product Description

    Description:

    portable scissor lift table



    1. This model of lift is designed and produced on the special requirement of customer, mainly on four aspects: loading capacity, lifting height, dimension of table and power supply.



    2. They have two mainly types according to different sites. One is to be sited on a special place to loading cargos and then lifting to a certain height and move the cargos.



    3. They other type is sited into a lift pit and accessorial tracks. The table of lift is in the same level with the ground which is convenient to move the cargo onto it. In this way it also called freight elevator.



    4. This kind of lift is usually used in production lines with many different work levels, cargos moving between stairs, truck material handling work and changeable height working table like operation table etc.



    5. We also supply spare parts free and supply technical supporting all the time.(Spare parts: control button, travel switch, Oil cylinder seals and the wrench etc.)



      固定電気ポータブルシザーリフトテーブル仕入れ・メーカー・工場 固定電気ポータブルシザーリフトテーブル仕入れ・メーカー・工場 固定電気ポータブルシザーリフトテーブル

    Technical dataTechnical Parameter:

    portable scissor lift table

    Model

    capacity

    Min.height

    Lifting range

    Platform size

    Motor power

    Self weight

    SJG0.3-3

    300

    650

    3000

    200*1200

    1.1

    780

    SJG0.5-5

    500

    850

    5000

    2000*1000

    2.2

    1200

    SJG1-3.3

    1000

    840

    3300

    1900*1500

    3

    1300

    SJG1-4.3

    1000

    860

    4300

    2500*2000

    3

    2500

    SJG1-6

    1000

    1230

    6000

    2200*1500

    2.2

    2500

    SJG2-3.5

    2000

    1000

    3500

    2200*1500

    3

    1800

    SJG3-4.5

    3000

    1060

    4500

    2200*1800

    4

    2200

    SJG1.5-3

    1500

    820

    3000

    1800*1200

    2.2

    1480

    SJG2-4.8

    2000

    980

    4800

    2000*2000

    4

    2200

    SJG2-6

    2000

    1150

    6000

    2200*2000

    5

    2800

    SJG1-8

    1000

    1320

    8000

    2200*1800

    4

    3000

    SJG2-9

    2000

    1400

    9000

    2500*1800

    7.5

    3800

    SJG2-11

    2000

    1900

    11000

    2500*1500

    7.5

    4100

    SJG3-10

    3000

    2100

    10000

    2500*1500

    7.5

    4300

    If you want to know the price,please provide below details:

    portable scissor lift table

    1- Lifting Capacity



    2- Lifting  height



    3- Platform size



     4- Other special needs

    Any confusing,please contact us directly.
