| 原産地: | 中国(本土) | 銘柄: | honty | モデル番号: | HTCY2.0-8 | 重量: | 2.8 t | 評価される積載量: | 2.0 t | 上昇のドライブ/作動: | 油圧 | 認証: | ce iso | 上昇のメカニズム: | 上昇を切りなさい | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | テーブルのサイズ: | 2.1*1.5メートル | 全体寸法: | 2.2*1.95*1.8メートル | 保証: | 12ヶ月 | Min.持ち上がる高さ: | 2.5メートル | 最高。 持ち上がる高さ: | 8メートル | 力: | 380ボルト/2.2kw | 拡張プラットフォーム: | 0.9メートル | 延長プラットフォーム容量: | 150キログラム | ターン半径: | 2.3メートル | ガードレール高さ: | 1.05メートル | タイヤ: | 固体 | グレード能力: | 25% | 電圧: | 50 ｈｚ/60 ｈｚ、220ボルト、/380ボルト/415ボルトとして | シザー構造: | マンガン鋼 | 油圧シリンダ: | 2ピース | ホイール: | 4組空気圧ホイール |
包装
| 包装: | 標準国際包装。をローディングポートは青島、中国。 |
cheap small equipment scissor mechanism platform lift with CE

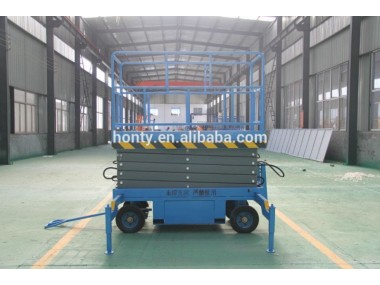

1.Movable scissor lift
This battery operated Scissor Lift with 8 meters lift height has a sturdy steel platform with a large2.1*1.5meters. steel extension deck for added reach
and an expanded work area. 0.9meter. total capacity, 2.8T. capacity on extension deck. Complies with CE standards. Industrial use, only. Product familiarization training for up to 6 people provided by Honty. Made in China.
Product Description
2. Movable hydraulic scissor lift driving force
A .Electric Powered / AC powered· When the electricity is available, usually for Indoor use
· No noise and air pollution
· Voltage: 110V, 220V, 380V,
B.Battery Powered / DC powered
· When the electricity is not available, usually for Outdoor use
· No noise and air pollution
C. Diesel Powered
· When the electricity is not available, usually for Outdoor use
· Longer use time
3. Safety protection
mobile scissor lift has various protection measures as follows
- Explosion-proof valves :protect hydraulic pipe ,anti-hydraulic pipe rupture
- Spillover valve :it can prevent high pressure when the machine moves up ,adjust the pressure
- Emergency decline valve :it can go down when you meet an emergency
- Phase lack &phase dislocation protection
Features + Benefits
- Platform controls are equipped with on-board diagnostics
- Auxiliary platform lowering system enables platform descent, even in the event of a power failure
- Zero inside turning radius
- Non-marking tires won't mar the floor surface
- 2.1m. x 0.8m. base provides sturdy performance
4. Mobile scissor lift types
Type | Platform (mm) | Dimension(mm) | Guardrail (mm) | Lifted height (mm) | Load (kg) | Weight (kg) | Power |
HTCY0.3-4 | 2100*800 | 2200*900*1100 | 1050 | 4 | 300 | 400 | 220v/2.2kw |
HTCY1.0-4 | 2100*1100 | 2200*1400*1300 | 1050 | 4 | 1000 | 680 | 380v/2.2kw |
HTCY2.0-4 | 2100*1500 | 2200*1800*1400 | 1050 | 4 | 2000 | 800 | 380v/2.2kw |
HTCY0.3-6 | 2100*800 | 2200*900*1290 | 1050 | 6 | 300 | 650 | 220v/2.2kw |
HTCY1.0-6 | 2100*1200 | 2200*1500*1450 | 1050 | 6 | 10000 | 1000 | 380v/3kw |
HTCY2.0-6 | 2100*1500 | 2200*1800*1600 | 1050 | 6 | 2000 | 1600 | 380v/3kw |
HTCY0.3-8 | 2100*900 | 2200*1100*1390 | 1050 | 8 | 300 | 720 | 220v/2.2kw |
HTCY0.5-8 | 2100*1200 | 2200*1500*1450 | 1050 | 8 | 500 | 1500 | 380v/2.2kw |
HTCY1.0-8 | 2100*1200 | 2200*1500*1530 | 1050 | 8 | 1000 | 1700 | 380v/2.2kw |
HTCY2.0-8 | 2100*1500 | 2200*1950*1800 | 1050 | 8 | 2000 | 2800 | 380v/3kw |
HTCY0.3-10 | 2100*1200 | 2200*1500*1530 | 1050 | 10 | 300 | 1500 | 380v/2.2kw |
HTCY1.0-10 | 2200*1500 | 2300*1950*1950 | 1050 | 10 | 1000 | 2500 | 380v/3.0kw |
HTCY2.0-10 | 2600*1500 | 2750*1950*1950 | 1050 | 10 | 2000 | 3000 | 380v/3.0kw |
HTCY0.3-12 | 2530*1500 | 2750*1950*1740 | 1050 | 12 | 300 | 2580 | 380v/2.2kw |
HTCY1.0-12 | 2700*1600 | 2900*1950*1950 | 1050 | 12 | 1000 | 3200 | 380v/3.0kw |
HTCY2.0-12 | 2700*1600 | 2900*1950*1950 | 1050 | 12 | 2000 | 3500 | 380v/4.0kw |
HTCY0.3-14 | 2750*1500 | 2900*1950*1970 | 1050 | 14 | 300 | 3000 | 380v/3.0kw |
HTCY1.0-14 | 3100*1600 | 3300*1950*2200 | 1050 | 14 | 1000 | 3000 | 380v/4.0kw |
HTCY0.3-16 | 3200*1600 | 3400*1980*2030 | 1050 | 16 | 300 | 3600 | 380v/3.0kw |
HTCY0.3-18 | 3500*1800 | 3800*2000*2200 | 1050 | 18 | 300 | 4700 | 380v/4.0kw |
5.Products Structure & display
