| 電圧: | Ac1相220v50/60hz | 原産地: | 中国(本土) | 銘柄: | jowell | 条件: | 新しい | モデル番号: | J-ar-1000 | 重量: | 200キログラム | 力(W): | 20w | 保証: | 5年 | 認証: | iso9001 | 次元(L*W*H): | 1240*1000*2050mm | 提供される売り上げ後のサービス: | 提供される海外サービス無し | ノズル: | 12個 | 外側の素材: | sus304 | 材料内部: | sus304 | ドア: | 電子的に連動してい |
包装
| 包装: | 合板および木枠 |
Installed In the inlet of Laboratory Air Shower Room
Features:
1.Photoelectric sensor, automatic blow
2.Electronically interlocked with double stainless door
3.Stainless nozzles
4. Audio system
5. With Auto, Stop, Manual, Emergency Stop function keys
6. An Emergency Stop push button: will override the operating cycle to release the door locks immediately
7. Custom sizes are possible

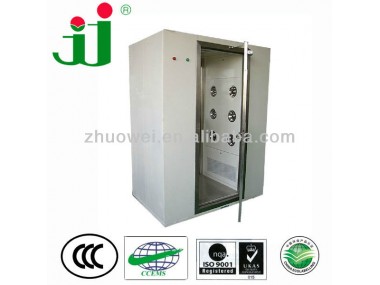

As clean room equipment, installed in the clean room entrance and used to remove the dust on personnel or goods entering through it, Automatic Blowing Air Shower, which is composed of case, fan(s), filter(s), nozzles and electric control system, is photoelectrically controlled, electronically interlocked and automatic blowing.
The materials for case can be chosen from all cold rolled steel plate with powder coated, stainless steel inside and cold rolled steel plate with powder coated outside , and all stainless steel (SS201 or SS304; thickness: 1.0 mm or 1.2 mm).
The air shower time is adjustable from 1-99 seconds, compact and sound in structure. An air shower passage can be made up of several air showers.
Model, dimensions and parameters:
| Model | J-AR-1000 | J-AR-1500 | J-AR-2000 | J-AR-3000 | |
| External Dimension (WxDxH)mm | 12401000x2050 | 12401500x2050 | 12402000x2050 | 12403000x2050 | |
| Internal work area dimension(WxDxH) mm | 800860x1930 | 8001360x1930 | 8001860x1930 | 8002860x1930 | |

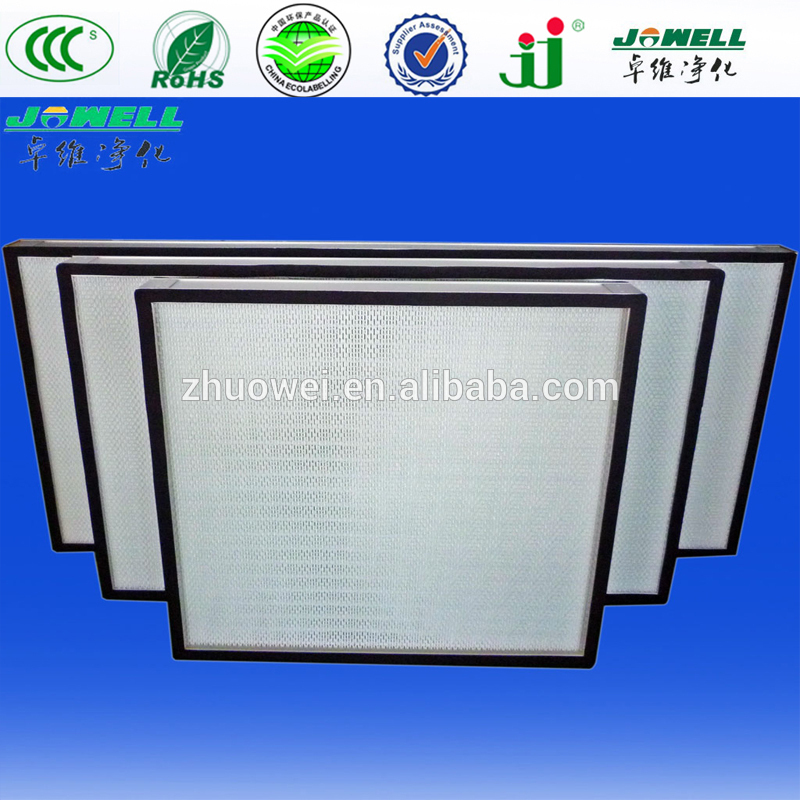

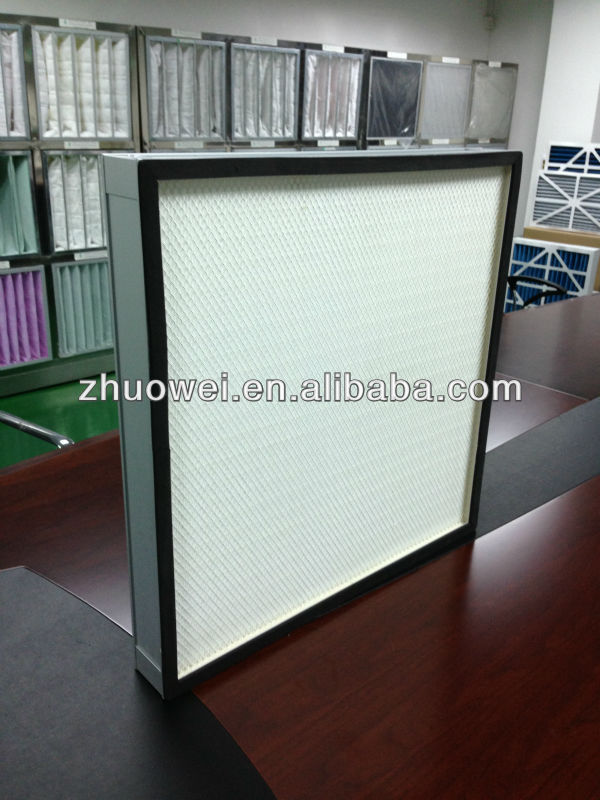

| HEPA filter dimensions | 600600x69 @2 Pieces | 915x60069 @2 Pieces | 600600x69 @4 pieces | 600600x69 @6 pieces | |
| No of Nozzles | 12( two sides) | 18 (two sides) | 24 (two sides) | 36 (two sides) | |
| Air shower time | 0~99s Adjustable | ||||
| Fan Run(r/m) | 2800 | 2800 | 2800 | 2800 | |
| Nozzle diameter | 38mm | ||||
| Wind Speed | 15~20m/s | ||||
| Noise | 62 db(A) | ||||
| Filter efficiency | ≥99.99% @0.3μm | ||||
| Power | 3N 380V 50/60Hz | ||||
| Max.Power (w) | 1100W | 1100W | 2200W | 3300W | |
| Approximate Weight | 200kgs | 300kgs | 400kgs | 600kgs | |
| Person(s) per cycle | 1 person | 2 persons | 3 persons | 4~5 person | |
| Cabinet Construction | 1-Main Body and Internal Work Zone are Coated Iron Sheet | ||||
| 2-Main Body is Coated Iron Sheet and Internal Work Zone is Stainless Steel | |||||
| 3-Main Body and Internal Work Zone are Stainless Steel | |||||
