| 原産地: | 中国(本土) | 電圧: | 380ボルト | 銘柄: | ヒーロー | 寸法 (L*W*H): | 3900*2060*2950ミリメートル | モデル番号: | yt | 重量: | 5000kgs | 自動等級: | 自動 | タイプ: | フレキソ印刷のプリンタ | 色及びページ: | 多色刷り | 全体のパワー: | 18kw | 使用法: | プラスチック印刷 | 提供される売り上げ後のサービス: | 利用できる海外サービスセンター | 版のタイプ: | フレキソ印刷 | 条件: | 新しい | 色: | 2.4.6色 |
包装
| 包装: | 木製ケース使用される単一のカラーオフセット印刷機 |
flexo printing machine
YOUTUBE VIDEO:
80Meter/MINS FLEXO:
100Meter/MINS FLEXO:
Company Information

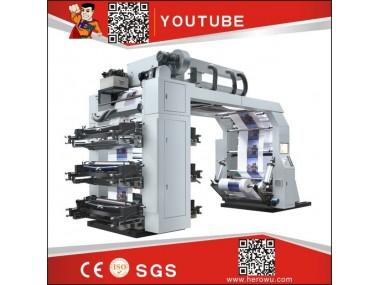

YT-6 colors flexo printing machine
MachineCharacteristics
1.Easy operation flexible starting accurate colour register.
2.The meter counter can set printing quantity according to the requirement.Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually,It will automatically stir the printing ink after lifting
4.The printing ink is spread by the knurled cylindder with even ink colour.
5.Reliable drying system coordinated with high-speed rotation,it will automatically break circuit when the machine stops.
6.3600 continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Variables:
Model of Machine | YT-6600 | YT-6800 | YT-61000 |
Max.Width of Printing Material | 600mm | 800mm | 1000mm |
Max.Printing With | 560mm | 760mm | 960mm |
Length Range of Printed Product | 191-914mm | 191-914mm | 191-914mm |
Max.Diameter of Roll Material | φ450mm | φ450mm | φ450mm |
Printing Speed | 5~200m/min | 5~200m/min | 5~200m/min |
Thickness of plate(Including Two-sides Glue Paper) | 2.38mm | 2.38mm | 2.38mm |
Total Power | 13kw | 15kw | 18kw |
Weight of Machine | 3500kg | 4200kg | 5000kg |
Overall Dimensions | 3900×1660×2950mm | 3900×1860×2950mm | 3900×2060×2950mm |
