| 電圧: | 220ボルト380ボルト440ボルトまたは顧客の要件として | 原産地: | 中国(本土) | 銘柄: | soome | モデル番号: | SMYS-GZ | 重量: | 15 t | 自動等級: | 自動 | タイプ: | フレキソ印刷のプリンタ | 全体のパワー: | 8-20 | 色及びページ: | 多色刷り | 版のタイプ: | 活版印刷 | 条件: | 新しい | 認証: | ce | 使用法: | ペーパープリンター | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 色: | 顧客の要件として | 広い幅: | 顧客の要件として |
包装
| 包装: | 木製ケースやプラスチックフィルム |

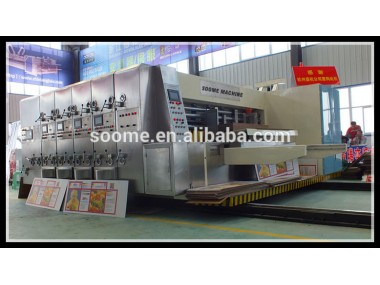

Carton Printing Slotting Die Cutting Machine
1.Automatic computerized machine ,easy operation.
2.Color touch screen,save 999 group orders order inquiries zero-order input, synchronous zero, the automatic / manual adjustment of phase, management of the parameters , up and down the plate, auto/semi-auto inking, automatic display of production and speed, and setting of the quantities.
3.All the drive rollers adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish. The drive gears adopt high quality alloy steel, after heat treatment and lapping finish.
4.Interval of all the roller is adjusted by high precise worm box. With three disk handle seat, convenient and swift.
5.Motorized electric numerical adjust the Axial and vertical movement of the knife seat and height of the carton.
6.Speed difference compensation system is equipped with Die cutting unit, Axially conjunct moving of the cam type soft roller is 40mm, uniform wear and tear , raise the occupation of the gum cover, save the cost
7.Suitable for 3/5/7 layer corrugated paperboard, as well E flute paperboard
8.Main engine controlled by frequency conversion,can save electricity for 30%.
NO. | parameter | unit | Model | |||
SMYS-GZ 420-2600 | SMYS-GZ 420-3000 | SMYS-GZ 480-2800 | SMYS-GZ -420-3200 | |||
1 | Inner width | mm | 2600 | 3000 | 2800 | 3000 |
2 | Max. Paper size | mm | 13002300 | 13002700 | 15002600 | 15003000 |
3 | Max. Printing size | Mm | 12502200 | 12502600 | 15002400 | 15002800 |
4 | Interval feeding size | mm | 14002300 | 14002700 | 16502600 | 16503000 |
5 | Max. speed | Pcs /min | 150 | 150 | ||
6 | Economic speed | Pcs /min | 0-120 | 0-100 | ||
7 | Topping precision | mm | +-0.5 | +-0.5 | ||
8 | Standard plate thickness | mm | 7.2 | 7.2 | ||
9 | Cardboard thickness | mm | 2-11 | 2-11 | ||
10 | Min. slotting interval | mm | 165x165x165x165 | 165x165x165x165 | ||
11 | Max. slotting depth | mm | 320 | 450 | ||
Feeding part:
l Electrically controlled the connecting and separated for the every unit with alarm to ensure the operator’s safety during its processing.
l The light alloy aluminum back-kick feeding vacuum adsorption paper feed mechanism with several group of rolling bearing to ensure more steady machinery operation.
l Left and right baffles ,kick feeding,back baffle adopt electric-control adjustment and computer numerical-controlled adjustment.
l Brush and the top suction device at the inlet and clear away the impurity from paper face to improve the printing quality.
l Infrared photo electricity counter presets the order processing quantity.
l One lock function for whole machine avoids damage caused by error operation(The mainframe cant start up when every unit hasn’t been connected).
printing unit for carton box making machine:
l All the axles and rollers are made of high-quality steel,rectified by computer dynamic balance,eliminating centrifugal forces ,plated with rigid chrome and grind surface.
l Printing phases adopt the planetary gear surface,
l Oil inspecting system alarms the lack of oil and automatically stops paper feeding at the same time.
l Fixed oil interval ,printing pressing roller and leading roller interval are adjusted by fast spanner-free facilities with fixed electromagnetic brake.
l Printing phase fixing adopts pneumatic brake structures,which will restrain the mainframes running to keep the original gear fixed position unchanged.
l Rubber roller and steel pipe surface are covered by wear-resistant rubber, specially up- med grind ,causing excellent working of the anilox roller.
l Steel anilox roller with grind steel pipe and pressing anilox and plated with rigid chrome
l Pneumatic plate-uplifting device functions as the anilox roller pneumatically separates with the stopping of the mainframe,automatically smoothing the oil to avoid dried oil.
Slotting Unit :
1) Synchronous adjustment the space between the two slotting knives (the height of box)
2) Synchronous moving the upper and lower slotting knives, paper-kicking knives, up and down creasing wheel.
3) Alloy steel materials , heating treatment, grinding and tooth form slotting knife, width is 5-7 mm
4) The alloy steel through heat treatment and grinding the edge iron which is keen and high accuracy.
Die-cutting unit:
u The die cutting unit depart from the main machine , separate driving ( adopts Kobi servo controller from German ) totally solved the problems of changing printing positing due to the die-cutting rushing.
u Adopt fold type rubber roller , easy to change and convenient operation . imported rubber roller from Taiwan , the using life is three times of the normal rubber roller .
u Automatic control left and right moving of rubber roller , the scope is 50 mm , steady moving and reliable.
u The die-cutting phasing adopts servo control , touch screen adjust and control, can store orders .
u Pneumatic control the gap between the cutter mould roller and the soft roller .
u It has speed compensation system , automatic adjust the speed of rubber roller , insure the same size of carton and the cutting dies .
