| 原産地: | 中国(本土) | 電圧: | 110/220ボルト | 銘柄: | tamprinter | 寸法 (L*W*H): | 950 × 700 × 1280ミリメートル(長さ) | モデル番号: | TM-S4-MT | 重量: | 185キログラム | 自動等級: | 半自動 | タイプ: | パッドプリンタ | 色及びページ: | 多色刷り | 全体のパワー: | 110/220ボルト60/50 ｈｚ 50ワット | 認証: | ce | 使用法: | 布プリンター, 管プリンター, ペーパープリンター, カードプリンター, ビルプリンター, ラベルプリンター | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 版のタイプ: | 平面プリンター | 条件: | 新しい |
包装
| 包装: | 合板ケース木製/場合/必要に応じて |
1, Technical parameters:
Plate area | 100200mm |
Worktable largest size | 200180mm |
Max printing diameter | DIM90mm |
Max printing speed | 1000pcs/hr |
Air consumption | 104litre/min(6bar) |
Power | 110/220V 60/50Hz 50W |
Dimensions | 950700X1280mm(LXWXH) |
Weight | 185Kg |
2, Machine features & advantages:
(1) Microcomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable.
(2) The SMC Pneumatic Components import from Japan.
(3) Convenient for adjusting the speed of movement & applicable to different printing needs.
(4) Adjusted independently at X and Y angle & accurate chromatograph.
(5) Provided safely rubber sheet and emergency cut of system.
(6) With multilevel-controlled--- satisfied with different requirement of the printing speed.

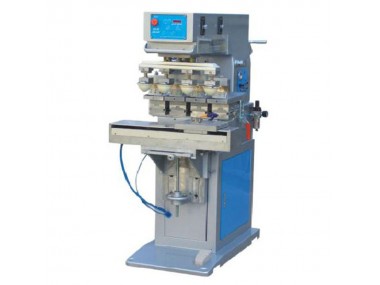

Product picture:
Machine accessories:
A copy of specification, one set of Allen key,
one piece of cross Screw and straight Screw,
one piece of scraper,
one piece of fuse,
4 pieces of Screw for fixing pad,
1.5 meter of power line.
Warranty: two years
Details:
Four color pad printer
Usage:
Other Infor.
Price Terms : FOB Shenzhen or Guangzhou
Payment Terms : Western unio ,T/T or L/C
Packing : Wooden case
Lead Time : Within 7days after receive payment
Standards Certificate : ISO9001-2000,CE
Ship Date:
1.By sea
within 30 days after receive remittance
2.By air
within 6 days after receive remittance
