| 原産地: | 中国(本土) | 電圧: | 220v | 銘柄: | 常緑 | 寸法 (L*W*H): | 1760900x1340mm | モデル番号: | hg56lii | 重量: | 800 | 自動等級: | 自動 | タイプ: | オフセット印刷機 | 色及びページ: | 単一色 | 全体のパワー: | 0.75キロワット | 認証: | iso | 使用法: | ペーパープリンター | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 版のタイプ: | 活版印刷 | 条件: | 新しい | プレス印刷機: | オフセット印刷機 |
包装
| 包装: | 強い木製ケース |

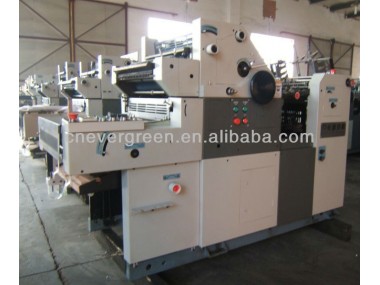

HG47L / HG56L Single color Offset Printing Machine
1. Easy operation: dampening, inking and pressing are operated by one handle at different level. The pressing cylinder on/off is controlled by Electric-Eye exactly and reliably.
2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.
3. Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink.
4. Presetted counter: This machine adopts electromagnetic presetted counter. If the quantited printing work finishes, the paper feeding stops automatically.
5. Double sheets detection: It can avoid the problem such as double sheets, paper overlap and non-stop.
6. The whole machine is controlled by PLC with the function of automatic stop if paper jam.
7. Our company produces 47 series and 56 series offset printing machine, including A-type, -type and
NP machines. Most of machines can be installed second color printing device.
8.Advanced quick plate clip
9. with perforation knife.
Model | Modelo | HG-47L | HG-47L | HG-56L | HG-56L | ||
Max. paper size | Max. tamanho do papel | 470×365mm | 560400 mm | ||||
Max. print size | Max. tamanho de impressão | 454X345 mm | 550375 mm | ||||
Paper weight | peso de papel | 28-250 g/m2 | 28-250 g/m2 | ||||
Printing speed | A velocidade de impressão | 2000-8000 sheets/h | 2000-8000 sheets/h | ||||
Plate size | tamanho da placa | 470×380×0.15 mm | 560×420×0.15 mm | ||||
Rubber size | tamanho de borracha | 470×420 mm | 560×460×1.95 mm | ||||
Rubber thickness | espessura da borracha | 1.95 mm | 1.95 mm | ||||
Ink roller | rolo de tinta | 10pieces(two close to board) | 14pieces(three close to board) | 10pieces(two close to board) | 14pieces(three close to board) | ||
Water roller | rolo da água | 4pieces(one close to board) | 5pieces(two close to board) | 4pieces(one close to board) | 5pieces(two close to board) | ||
Power | poder | Power 0.75kw(47) ,power 1.1kw(56), air pump power 0.55kw,(single) 220 V | |||||
dimension | dimensão | 1760×900×1340 mm | 1760×1000×1340 mm | ||||
Machine weight | Peso | 700 kg | 720 kg | 800 kg | 820 kg | ||
