原産地: | 中国(本土) | 寸法 (L*W*H): | 2000 * 1150*1700ミリメートル | 銘柄: | jianhong | モデル番号: | JH-210コンピュータ制御tpye | 自動等級: | 自動 | タイプ: | グラビア印刷マシン | 全体のパワー: | 5.0kw | 色及びページ: | 多色刷り | 条件: | 新しい | 使用法: | ラベルプリンター | 版のタイプ: | 活版印刷 |
包装
包装: | 1セット/木製カートン |

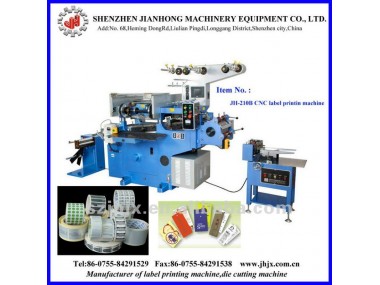

JH-210 Automatic Adhesive label relief printing machinery
SPECIFICATION | JH-210 Automatic Adhesive label relief printing machinery |
Printing Dimension | 210*300mm |
2 Colors | 210*140mm |
3 Colors | 210*90mm |
4 Colors | 210*65mm |
Printing Speed | 4800-12000/h |
Max Mold-cut Arts | 300*220mm |
Max Paper Length | 200mm |
Max Paper Width | 210mm |
Main Motor | 2.2kw |
Air Svction | 0.375kw |
N.W | 2000kg |
STANDARD ACCESSORIES | |
Complete 2-Color | 1 set |
Complete 3-Color | 1 set |
Complete 4-Color | 1 set |
Unwinder | 1 set |
Auto sheeter | 1 set |
Tools | 1 set |
Numbering system | 1 each |
JH-210 Automatic Adhesive label relief printing machinery
1.Simple in operation, fast, flexible,accurate in positioning, automatic paper feeding,and consecutive operations of printing, film coating,die cutting and finished products.
2.Advanced ink distribution ensures more even coloring
3.Advanced automatic control system to ensure sutomatic shutdown when there is no more paper, or when the set number of paper sounting is reached.
4.Slanting back design is employed. Inching contack is emplyed for printing and die cutting during mechanical action,as a result the pressure is evenly distributed, and clear and spotless printing results can be got whether for large-sized low color or fine characters.
5.The built-in centralised oil supply system ensures high-speed operation with low noise and no abrasion.
