| 原産地: | 中国(本土) | 寸法 (L*W*H): | 2200*1150*1700 | 銘柄: | jianhong | モデル番号: | JH-250 | 自動等級: | 自動 | タイプ: | グラビア印刷マシン | 全体のパワー: | 5.0 | 色及びページ: | 多色刷り | 条件: | 新しい | 使用法: | ラベルプリンター | 色: | ブルー | 印刷色: | 多色 | 操作: | シンプルで簡単 | 印刷タイプ: | 活版 | 制御: | コンピュータ制御 | 場所: | 正確な場所 | 印刷可能な材料: | 多くのmateialsことが使用このマシン | プレートタイプ: | 活版 |
| SPECIFICATION | High-speed Computerized printing press |
| Printing Dimension | 250*400mm |
| 2-Color | 240*195mm |
| 3-Color | 240*120mm |
| 4-Color | 240*92mm |
| Printing Speed | 4800-11000 r/h |
| Max Die-cut Area | 240*260mm |
| Max. Paper Width | 250mm |
| Main motor | 3.7KW |
| Air Suction | 0.375 KW |
| Net Weight | 3200Kg |
| Rated Voltage | 380V |
| STANDARD ACCESSORIES | |
| Complete 2-Color | 1 set |
| Complete 3-Color | 1 set |
| Complete 4-Color | 1 set |
| Unwinder | 1 set |
| Auto sheeter | 1 set |
| Tools | 1 set |
| Counting system | 1 each |

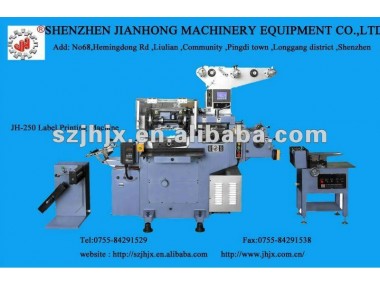

High-speed Computerized printing press for label ---
1.Simple, quick and flexible in operation, accurate in positioning,automatic paper feeding,and integrating successive printing, film coating,die cutting and waste discharging together.
2.Advanced ink distribution ensures more even coloring
3.Advanced automatic control system to ensure sutomatic shutdown when there is no more paper, or when the set number of paper sounting is reached.
4.Slanting back design is employed. Inching contack is emplyed for printing and die cutting during mechanical action,as a result the pressure is evenly distributed, and clear and spotless printing results can be got whether for large-sized low color or fine characters.
5.The built-in centralised oil supply system ensures high-speed operation with low noise and no abrasion.
