| 原産地: | 中国(本土) | 電圧: | 220ボルト | 銘柄: | jianhong | 寸法 (L*W*H): | L4600 * w1420 * H1480mm | モデル番号: | JH-300 | 自動等級: | 自動 | 重量: | 15000キログラム | タイプ: | グラビア印刷マシン | 色及びページ: | 多色刷り | 全体のパワー: | 35KW | 認証: | iso9001: 2008 ce | 使用法: | ラベルプリンター | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 保証: | 一年 | 条件: | 新しい | モデル: | JH-300 | ブランド: | jianhong | マシンの重量: | L4600 * w1420 * H1480mm | メイン電源: | 35KW | 定格電流(a): | 100 | 定格電圧: | 380 | 設置面積(ミリメートル): | 8000*3000 | マシンの重量(kg): | 6000 | 梱包サイズ: | 20CBM | 多色: | を4 colours |
包装
| 包装: | 木製カートン梱包サイズ: 20CBM |

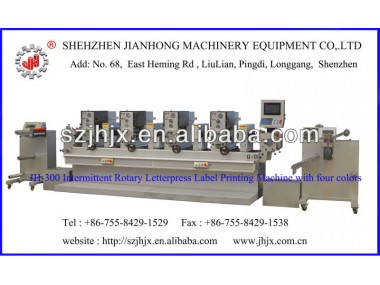

JH-300 four colors Intermittent Label Printing Machine
| SPECIFICATION | JH-300 four colors Intermittent Label Printing Machine |
| Printing Dimension | Fully Rotary 280*326mm |
| Intermittence 280*280mm | |
| Maximal Printing Speed(times/h) | Fully Rotary 12000/h |
| Intermittence 9000/h | |
| Rated Power (kw) | 35 |
| Rated Current (A) | 100 |
| Rated Voltage(V) | 380 |
| Physical Dimensions(mm) | L3700W1420XH1480 |
| Installation Area (mm) | 80003000 |
| Machine Weight(KG) | 4500 |
| Packing Size | 15 CBM |
| |
| STANDARD ACCESSORIES |
|
| 1.Paper Feeder | 9.Tool |
| 2.Rotator | 10.Workbench |
| 3.Plate Cylinder | 11.k Roller Rack |
| 4.Rubber Roller | |
| 5.Iron Roller | |
| 6.UV Dryer | |
| 7.Plate frame | |
| 8.Wash Tray |
Rotary Letterpress Label Printing Machinery,Rotary printing machine
1.The machine control system adopts bosch group rexoth digital driver system imported form germany,providing high precision for users;
2.18ink-distributing rollers and double-ink form rollers,which get graphics printed more perfect and support ultra long trapping printing without vogue image;
3.Flexible polishing installment,which gets the gloss of printed product durable,causes printed product more environment-friendly and reduces production cost effectively
4.Ultra light flinty aluminum alloy plate tube and plate fitting method,which get the plate fitting simpler and easier
5.Adjustable UVphotosource and interlocked control of printing speed,which get printed product have perfect drying effect regardless of any printing material or printing speed seleced,free from manual regulation and avoiding unnecessary waste of time and material;
6.With automatic wash tray,in noneed of manually washing
7.Conform to the international Compulsory Standard for Security&Safety Protection,with automatic fault alarm(shunt-down)and fault display functions,which get operations safer and lower printing costs;
8.Adjustable pringing plate,which get the alignment of plate easier.
