原産地: | 中国(本土) | 電圧: | 220ボルト | 銘柄: | jianhong | 寸法 (L*W*H): | 2200*1150*1700ミリメートル | モデル番号: | JH-250B | 自動等級: | 自動 | 重量: | 2000キログラム | タイプ: | グラビア印刷マシン | 色及びページ: | 多色刷り | 全体のパワー: | 5.1KW | 認証: | iso9001: 2008 ce | 使用法: | ラベルプリンター | 提供される売り上げ後のサービス: | 利用できる海外サービスセンター | 保証: | 一年 | 条件: | 新しい | 2. automatic紙シート: | interworkでメインengin | 3。印刷: | ワン機能のメインengin | 4. die-切断: | ワン機能のメインengin | 5。フィルムコーティング: | ワン機能のメインengin | 6。コンピュータ制御: | タイプの制御 | 7. waste放電: | ワン機能のメインengin | 8. servoモーター: | 紙伝送 | 9。多色: | 選択の1-4colors | 10。デジタル駆動システム: | タッチスクリーン | プレートタイプ: | 活版 |

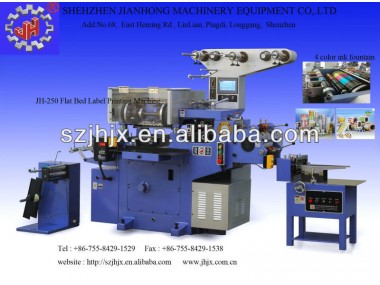

JH-250 Self-adhesive Label Printing Machine,barcode printer,Thermal Printer,Barcode Labels Printing Machine,Zebra Printing,thermal transfer printer
Brand | JH-250 | ||
Chase Dimension(mm) | 250*400 | ||
Maximal Printing Area(mm) | 1-2 color | 240*195 | |
3 color | 240*120 | ||
4 color | 240*92 | ||
Max. Web Width(mm) | 250 | ||
Maximal Paper Forward(mm) | 200 | ||
Maximal Hot-Staming Area (mm) | 240*130 | ||
Maximal Die-Cutting Dimension(mm) | 240*200 | ||
Printing Speed( Times/h) | 4800~11000 | ||
Power supply | 3 phase/380V/50HZ | ||
Machine Size(mm) | 2200*1150*1700 | ||
Machine Weight | Net Weight (KG) | 3200 | |
Gross Weight(KG) | 3520 | ||
Wooden Box Packing Size (CBM) | 8.50 | ||
Power& Motor | Main Drive Motor(KW) | 3.70 | |
Air Suction Motor(KW) | 0.375 | ||
Laminating inder (KW) | 0.025 | ||
Hot-Stamping Heather(KW) | 1.00 |
1.Advanced ink distribution ensures more even coloring
2.Simple in operation, fast, flexible,accurate in positioning, automatic paper feeding,and consecutive operations of printing, film coating,die cutting and finished products.
3.Advanced automatic control system to ensure sutomatic shutdown when there is no more paper, or when the set number of paper sounting is reached.
4.The built-in centralised oil supply system ensures high-speed operation with low noise and no abrasion.
5.Slanting back design is employed. Inching contack is emplyed for printing and die cutting during mechanical action,as a result the pressure is evenly distributed, and clear and spotless printing results can be got whether for large-sized low color or fine characters.
6:JH-250 Self-adhesive Label Printing Machine enjoy a good fame
