| 原産地: | 中国(本土) | 電圧: | 220ボルト | 銘柄: | jianhong | 寸法 (L*W*H): | 2000*1150*1700 | モデル番号: | JH-210B | 自動等級: | 自動 | 重量: | 2000キログラム | タイプ: | グラビア印刷マシン | 色及びページ: | 多色刷り | 全体のパワー: | 5.5kw | 認証: | iso9001: 2008 ce | 使用法: | ラベルプリンター | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 保証: | 1年 | 条件: | 新しい | 色: | ブルー | 印刷色: | 多色 | 素材: | 合金 | オプションのデバイスで: | 多くのdeivces | 操作: | シンプルで簡単 | スピード: | 非常に高速 |
包装
| 包装: | 木製カートン |

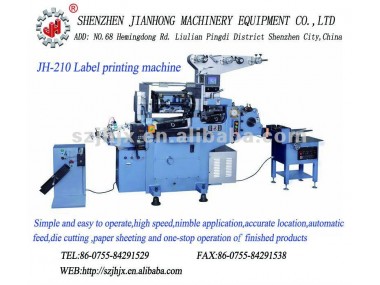

JH-210B Sticker Label printing and punching machine
| SPECIFICATION | JH-210B Sticker Label printing and punching machine |
| Printing Dimension | 210*300mm |
| 2-Color | 210*140mm |
| 3-Color | 210*90mm |
| 4-Color | 210*65mm |
| Printing Speed | 4800-12000 r/h |
| Max Die-cut Area | 210*140mm |
| Max. Paper Width | 210mm |
| Main motor | 2.2KW |
| Air Suction | 0.375 KW |
| Net Weight | 2000Kg |
| Rated Voltage | 220V |
| STANDARD ACCESSORIES | |
| Complete 2-Color | 1 set |
| Complete 3-Color | 1 set |
| Complete 4-Color | 1 set |
| Unwinder | 1 set |
| Auto sheeter | 1 set |
| Tools | 1 set |
| Counting system | 1 each |
JH-210B Sticker Label printing and punching machine ---
1.Simple, quick and flexible in operation, accurate in positioning,automatic paper feeding,and integrating successive printing, film coating,die cutting and waste discharging together.
2.Advanced ink distribution ensures more even coloring
3.Advanced automatic control system to ensure sutomatic shutdown when there is no more paper, or when the set number of paper sounting is reached.
4.Slanting back design is employed. Inching contack is emplyed for printing and die cutting during mechanical action,as a result the pressure is evenly distributed, and clear and spotless printing results can be got whether for large-sized low color or fine characters.
5.The built-in centralised oil supply system ensures high-speed operation with low noise and no abrasion.
6: JH-210B Sticker Label printing and punching machine enjoy a good fame by our customers
