| 原産地: | 中国(本土) | 電圧: | 380v | 銘柄: | jiamao | 寸法 (L*W*H): | 10x2.5x2.75 | モデル番号: | Jmms- b | 自動等級: | 自動 | 重量: | 10t | タイプ: | グラビア印刷マシン | 色及びページ: | 多色刷り | 全体のパワー: | 110kw | 認証: | ce | 使用法: | ペーパープリンター, プラスチック製のプリンタ | 提供される売り上げ後のサービス: | 利用できる海外サービスセンター | 保証: | 1年間 | 条件: | 新しい |
包装
| 包装: | 木製ケース/木製パレット/strenchフィルム |
Feature:

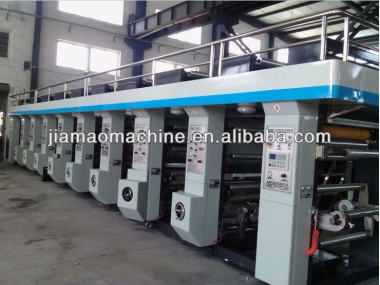

1. The whole machine is fixed by permutation composition, according to the customers' requirement the printing color unit can be increased or decreased as well as the cover printing mechanism can be added.
2. The mainframe adopts vector frequency speed controller, The whole machine adopts threes-motor constant-tension force control system.
3. Each unit of computer flashed system is controlled by separating microprocessor. It can adjust the flashed deviation quickly and precisely.
4. With display of flashed deviation, correcting for system comprehensive deviation as well as super-different slamming function.
5. Double photo-electricity checking; improve the whole checking and adjustment speed.
6. The winding and the winding traction adopt vector frequency motor and moment motor controller.
7. Wing is adopted with frequency motor with magnetic powder clutch to wind.
8.The printing pressure cylinders, discharging traction pressure cylinders and winding traction pressure cylinders adopt pneumatic controller.
9. Pneumatic back pressure shifting blade.
10. Ink cycle system.
11. Gas expansion style loading and unloading shaft.
Main technical parameter:
Model | JMMS-B 600 | JMMS-B 800 | JMMS-B1000 | JMMS- B1200 |
Printing Cylinder Dia(mm) | 100-320 | 100-320 | 100-320 | 100-320 |
Printing Width(mm) | 600 | 800 | 1000 | 1200 |
Unwinding Dia(mm) | 600 | 600 | 600 | 600 |
Rewinding Dia(mm) | 600 | 600 | 600 | 600 |
Printing Speed(m/min) | 10-120 | 10-120 | 10-120 | 10-120 |
Register Precision(mm) | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 |
Drying Method | Electric heating | Electric heating | Electric heating | Electric heating |
Machine Power(kw) | 120 | 120 | 122 | 122 |
Weight(T) | 15 | 16 | 17 | 18 |
Size(m) | 10.2x2.3x2.75 | 10.2x2.5x2.75 | 10.2x2.7x2.75 | 10.2x2.9x2.75 |
