電圧: | 380v | 原産地: | 中国(本土) | 銘柄: | シンタイ | 条件: | 新しい | モデル番号: | Xtdq- 101- 2 | 重量: | 1.2 | 力(W): | cusomzed | タイプ: | 乾燥オーブン | 保証: | 5年 | 認証: | Ce、i so9000-2008、 sgs | 次元(L*W*H): | カスタマイズされた | 提供される売り上げ後のサービス: | 利用できる海外第三者サポート | 温度: | 0から300/500c | 空気流量: | カスタマイズされた | 内側の素材: | 炭素鋼/stainles | 色: | カスタマイズされた | パッケージ: | 木製のケースでpackng輸出 |
包装
包装: | 木製のケースで輸出標準 |
CE approved rice convection dry oven with cheap price
Operating Voltage | Watt(kw) | Operation Temperature (°C) | Inside Dimensions (D*W*H mm) | |
XTDQ-101-0 XTDQ-101-1 | 220 220 | 1.6 2.2 | indoor-300°C indoor-300°C | 350*350*350 350*450*450 |
XTDQ-101-2 | 220 | 3.2 | indoor-300°C | 450*550*550 |
XTDQ-101-3 | 220 | 4.6 | indoor-300°C | 500*600*750 |
XTDQ-101-4 | 220/380 | 9 | indoor-300°C | 800*800*1000 |
XTDQ-101-5 | 220/380 | 12 | indoor-300°C | 800*1200*1200 |
XTDQ-101-6 | 380 | 15 | indoor-300°C | 1000*1200*1200 |
XTDQ-101-7 | 380 | 18 | indoor-300°C | 1000*1200*1500 |
XTDQ-101-8 | 380 | 21 | indoor-300°C | 1200*1500*1500 |
Other models can be customized according to customer requirement
Brief introduction
Inner Hull
Material : high quality SUS304 Stainless Steel
Advantage: corrosion resistance , high temperature , the advantage of high cleanliness.
Body Shell
Material: high quality sheet steel
Between shell and studio pack high-temperature insulation aluminum silicate cotton, the surface of the lacquer that bake
Two heaters are mounted separately at the bottom of the studio.
One heater has one independent switch.
101A is equipped with blast control.
Structure of drying oven
From the inside to outside
inner chamber(stainless steel)→ heating element(S.S304 finned tube)→insulating layer ( aluminum silicate wool)→outermost shell(carbon steel/stainless steel)
Insulating layer thickness: 100C =50mm
200C=100mm
300C=150mm
1. Inner size: length*width*height
2. Inner material: carbon steel/stainless steel
3. Temperature range: normal temperature ~300/500 C
4. Accuracy: ±1 °C/2 °C heated air circulation drying oven
5 .Baked medinum: depends on the capacity once Notice: 1.powdered,use tray 2.graininess ,use halftone
6.Voltage: Over 500*500*500mm use 380V
Attention
- The oven shall be laid at the level of drying chamber without non-corrosive gas.
- Power input end shall be installed specialized preamp off switch and connected good ground electrode for ensuring safety.
- Check power supply and voltage and the electricity shall be used after correct power supply wiring.
- If first usage or laying for some time, before increasing temperature, you should bake at low temperature (80-100 degree celsius) for 2 hours ,in order to facilitate moisture leaking and prolong the Bohp life.
5. Meter temperature control thermosensitive element probe shall be inserted from left side thermometer hole to studio, shouldn’t be inserted from top valve center hole ,for fear that affecting usage.
- Good baking performance . When initial use, please observe for from time to time to avoid casing loss for overheating baking Bohp.
- If feeling large thermal inertia when using, you can turn off one heater for reducing heating power to prevent overheating cause by excessive inertia.
- Take out baking object, please do not hit thermostat which stretching into the studio to avoid abnormal working.
- In case of failure, please find professional electrician.
- The drying over should be far away from explosive, flammable items.

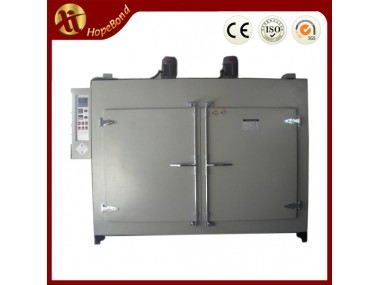

Photos For Reference:
