| 原産地: | 中国(本土) | 銘柄: | oem | 条件: | 新しい | モデル番号: | Yds-3 | 重量: | 4.5キロ | 容量: | 3リットル | 次元(L*W*H): | 3030x49 | 材料: | アルミ合金 | 色: | 白 | ネック径: | 50mm | 容量: | 2liters-100liters |
包装
| 包装: | カートン |

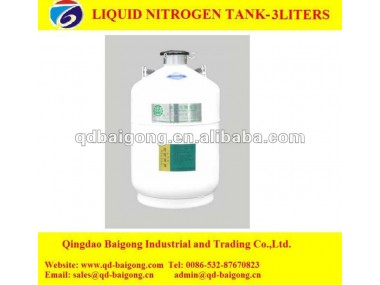

Cryogenics Container
High-strength aluminum alloy structure, light empty weight
Hinged handle (except YDS-5-200) is portable
The lockable device can be installed to the container lid upon costomers' requirement so as to protect biological samples stored (limit for 30mm, 50mm,80mm calibers)
Encoding system is applied on canisters for easy recognition and convenient accessing of samples
More than 5-year vacuum quality guarantee is ensured with the multi-layer thermal isolation design
Specifications
Model | Unit | YDS-1 -30 | YDS-2 -30 | YDS-3 | YDS-5 -200 | YDS-6 | YDS-10 | YDS-10 -80 | YDS-10A | YDS-13 |
Capacity | L | 1.0 | 2.0 | 3.15 | 5.0 | 6.0 | 10.0 | 10.0 | 11.0 | 13.0 |
Empty Weight | kg | 2.0 | 2.9 | 3.4 | 5.3 | 5.0 | 6.2 | 6.5 | 6.8 | 7.0 |
Full Weight | kg | 2.8 | 4.6 | 5.9 | 9.3 | 9.9 | 14.3 | 14.6 | 15.7 | 17.5 |
Neck Diameter | mm | 30 | 30 | 50 | 200 | 50 | 50 | 80 | 50 | 50 |
Outer Diameter | mm | 180 | 217 | 224 | 287 | 287 | 303 | 303 | 287 | 303 |
Height | mm | 320 | 365 | 425 | 325 | 445 | 530 | 545 | 615 | 615 |
Static Evaporation Loss Mass | L/d | 0.067 | 0.067 | 0.105 | 1.667 | 0.100 | 0.100 | 0.175 | 0.100 | 0.103 |
Static Holding Time | mm | 15 | 30 | 30 | 3 | 60 | 100 | 57 | 110 | 126 |
Canister Outer Diameter | mm | 26 | 19 | 38 | — | 38 | 38 | 63 | 38 | 38 |
Canister Height (single/double) | Nos | 120 | 120 | 120 | — | 120 | 120 | 120 | 120/276 | 120/276 |
Number of Canisters | 0.5ml | 1 | 3 | 3~6 | — | 3~6 | 3~6 | 3~6 | 3~6 | 3~6 |
