| 原産地: | 中国(本土) | 銘柄: | oem | 条件: | 新しい | モデル番号: | yds | 重量: | 3.5-37kg | 容量: | 2-100liters | 次元(L*W*H): | 6060x120cm | 材料: | アルミ合金 | 色: | 白 | 容量: | 2liters-100liters | ネック径: | 80mm |
包装
| 包装: | カートン |

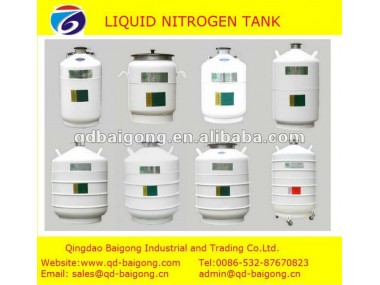

Liquid nitrogen container
Specifications
Model | Unit | YDS-1 -30 | YDS-2 -30 | YDS-3 | YDS-5 -200 | YDS-6 | YDS-10 | YDS-10 -80 | YDS-10A | YDS-13 |
Capacity | L | 1.0 | 2.0 | 3.15 | 5.0 | 6.0 | 10.0 | 10.0 | 11.0 | 13.0 |
Empty Weight | kg | 2.0 | 2.9 | 3.4 | 5.3 | 5.0 | 6.2 | 6.5 | 6.8 | 7.0 |
Full Weight | kg | 2.8 | 4.6 | 5.9 | 9.3 | 9.9 | 14.3 | 14.6 | 15.7 | 17.5 |
Neck Diameter | mm | 30 | 30 | 50 | 200 | 50 | 50 | 80 | 50 | 50 |
Outer Diameter | mm | 180 | 217 | 224 | 287 | 287 | 303 | 303 | 287 | 303 |
Height | mm | 320 | 365 | 425 | 325 | 445 | 530 | 545 | 615 | 615 |
Static Evaporation Loss Mass | L/d | 0.067 | 0.067 | 0.105 | 1.667 | 0.100 | 0.100 | 0.175 | 0.100 | 0.103 |
Static Holding Time | mm | 15 | 30 | 30 | 3 | 60 | 100 | 57 | 110 | 126 |
Canister Outer Diameter | mm | 26 | 19 | 38 | — | 38 | 38 | 63 | 38 | 38 |
Canister Height (single/double) | Nos | 120 | 120 | 120 | — | 120 | 120 | 120 | 120/276 | 120/276 |
Number of Canisters: n | 0.5ml | 1 | 3 | 3~6 | — | 3~6 | 3~6 | 3~6 | 3~6 | 3~6 |
Straw Holding Capacity(single level) | 0.5ml | 52 | 90 | 132×n | — | 132×n | 132×n | 360×n | 132×n | 132×n |
0.25ml | 110 | 204 | 298×n | — | 298×n | 298×n | 846×n | 298×n | 298×n | |
Straw Holding Capacity(double level) | 0.5ml | — | — | — | — | — | — | — | 214×n | 214×n |
0.25ml | — | — | — | — | — | — | — | 472×n | 472×n |
