| 原産地: | 中国(本土) | 条件: | 新しい | モデル番号: | CNG2-G-325-80-20B | 重量: | 66キログラム | 容量: | 80l | 次元(L*W*H): | 1200ミリメートル* 325ミリメートル* 325ミリメートル | 提供される売り上げ後のサービス: | 提供される海外サービス無し | 素材: | 鋼 | 製造規格: | ISO11493 | 容量: | 80l | 壁の厚さ: | 5ミリメートル | シリンダー色: | 赤、青、ダーク、など | 素材: | 30 crmo | 重量: | 66キログラム | 圧力: | 低 | バルブ: | に応じて顧客の要件 | 外径: | 325ミリメートル |
包装
| 包装: | ヌードパッキングでプロテクチンプラスチックネットまたはナイロンバッグ。 |

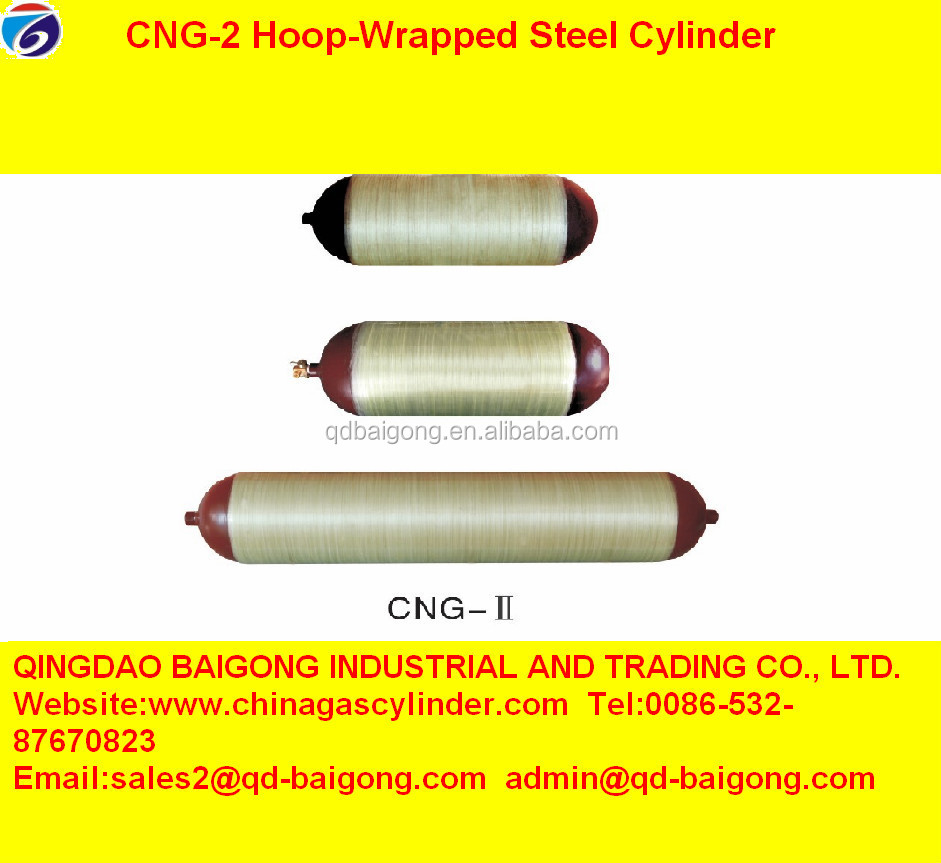

CNG-2 Hoop-wrapped Steel Cylinder
Product Description
cng cylinder price
1.capacity:80L
2.outside Diameter:325mm
3.length:1200mm
4.weight:66kg
GB17258 CNG Steel Cylinder for Vehicle | |||||||
| Type | Outside Diameter(mm) | Water Capacity(L) | Height (Without Value)(mm) | Weight (Without Valve&Cap)(kg) | Working Pressure (MPa) | Design Wall Thickness(mm) | Material |
| CNP20-30-232A | 232 | 30 | 920 | 44 | 20 | 6.3 | 30CrMo/ 34CrMo4 |
| CNP20-40-232A | 40 | 1230 | 58 | ||||
| CNP20-50-232A | 50 | 1500 | 69 | ||||
| CNP20-40-279A | 279 | 40 | 900 | 56 | 7.6 | ||
| CNP20-50-279A | 50 | 1090 | 66 | ||||
| CNP20-60-279A | 60 | 1280 | 77 | ||||
| CNP20-70-279A | 70 | 1470 | 87 | ||||
| CNP20-80-279A | 80 | 1660 | 98 | ||||
| CNP20-90-279A | 90 | 1850 | 108 | ||||
| CNP20-55-325A | 325 | 55 | 865 | 78.5 | 9 | ||
| CNP20-60-325A | 60 | 930 | 83 | ||||
| CNP20-65-325A | 65 | 995 | 89 | ||||
| CNP20-70-325A | 70 | 1060 | 94 | ||||
| CNP20-80-325A | 80 | 1190 | 105 | ||||
| CNP20-90-325A | 90 | 1320 | 116 | ||||
ISO11439 CNG-1Steel Cylinder for Vehicle | |||||||
| Type | Outside Diameter(mm) | Water Capacity(L) | Height (Without Value)(mm) | Weight (Without Valve&Cap)(kg) | Working Pressure (MPa) | Design Wall Thickness(mm) | Material |
| CNP20-20-232A | 232 | 20 | 650 | 24 | 200 | 5.5 | 34CrMo4 |
| CNP20-25.5-232A | 25.5 | 800 | 30 | 200 | |||
| CNP20-28-232A | 28 | 860 | 32 | 200 | |||
| CNP20-30-232A | 30 | 915 | 34 | 200 | |||
| CNP20-34-232A | 34 | 1025 | 37 | 200 | |||
| CNP20-50-232A | 50 | 1445 | 53 | 200 | |||
| CNP20-57-356A | 356 | 57 | 800 | 67 | 200 | 7.5 | |
| CNP20-65-356A | 65 | 890 | 72 | 200 | |||
| CNP20-70-356A | 70 | 945 | 75 | 200 | |||
| CNP20-77-356A | 77 | 1025 | 80 | 200 | |||
| CNP20-90-356A | 90 | 1175 | 88 | 200 | |||
| CNP20-100-356A | 100 | 1290 | 95 | 200 | |||
| CNP20-110-356A | 110 | 1400 | 104 | 200 | |||
| CNP20-113-356A | 113 | 1430 | 106.5 | 200 | |||
| CNP20-120-356A | 120 | 1505 | 112 | 200 | |||
| CNP20-130-356A | 130 | 1610 | 120 | 200 | |||
| CNP20-145-356A | 145 | 1755 | 132 | 200 | |||
| CNP20-150-356A | 150 | 1835 | 135 | 200 | |||
| CNP20-80-406A | 406 | 80 | 880 | 91 | 200 | 8.8 | |
| CNP20-90-406A | 90 | 960 | 99 | 200 | |||
| CNP20-100-406A | 100 | 1050 | 107 | 200 | |||
| CNP20-110-406A | 110 | 1135 | 115 | 200 | |||
| CNP20-120-406A | 120 | 1220 | 123 | 200 | |||
| CNP20-130-406A | 130 | 1310 | 131 | 200 | |||
| CNP20-140-406A | 140 | 1395 | 139 | 200 | |||
| CNP20-150-406A | 150 | 1475 | 147 | 200 | |||
| CNP20-165-406A | 165 | 1595 | 159 | 200 | |||
| CNP20-180-406A | 180 | 1740 | 171 | 200 | |||
CNG-2 Hoop-wrapped Steel Cylinder for Vehicle | |||||||
| Type | Outside Diameter(mm) | Water Capacity(L) | Height (Without Value)(mm) | Weight (Without Valve&Cap)(kg) | Working Pressure (MPa) | Design Wall Thickness(mm) | Material |
| CNG2-G-325-50-20B | 325 | 50 | 810 | 42 | 20 | 5 | + 30CrMo |
| CNG2-G-325-60-20B | 60 | 940 | 50 | 20 | 5 | + 30CrMo | |
| CNG2-G-325-70-20B | 70 | 1070 | 58 | 20 | 5 | + 30CrMo | |
| CNG2-G-325-80-20B | 80 | 1200 | 66 | 20 | 5 | + 30CrMo | |
| CNG2-G-325-90-20B | 90 | 1330 | 74 | 20 | 5 | + 30CrMo | |
| CNG2-G-325-100-20B | 100 | 1460 | 82 | 20 | 5 | + 30CrMo | |
| CNG2-G-325-110-20B | 110 | 1590 | 90 | 20 | 5 | + 30CrMo | |
| CNG2-G-325-120-20B | 120 | 1720 | 98 | 20 | 5 | + 30CrMo | |
| CNG2-G-356-65-20B | 356 | 65 | 871 | 59 | 20 | 5.5 | + 30CrMo |
| CNG2-G-356-70-20B | 70 | 926 | 62 | 20 | 5.5 | + 30CrMo | |
| CNG2-G-356-75-20B | 75 | 981 | 65 | 20 | 5.5 | + 30CrMo | |
| CNG2-G-356-80-20B | 80 | 1036 | 68 | 20 | 5.5 | + 30CrMo | |
| CNG2-G-356-90-20B | 90 | 1146 | 74 | 20 | 5.5 | + 30CrMo | |
| CNG2-G-356-100-20B | 100 | 1256 | 82 | 20 | 5.5 | + 30CrMo | |
| CNG2-G-356-110-20B | 110 | 1366 | 89 | 20 | 5.5 | + 30CrMo | |
| CNG2-G-356-120-20B | 120 | 1476 | 96 | 20 | 5.5 | + 30CrMo | |
| CNG2-G-356-200-20B | 200 | 2356 | 155 | 20 | 5.5 | + 30CrMo | |
| CBG2-G-406-80-20B | 406 | 80 | 850 | 66 | 20 | 6 | + 30CrMo |
| CNG2-G-406-90-20B | 90 | 930 | 74 | 20 | 6 | + 30CrMo | |
| CNG2-G-406-100-20B | 100 | 1010 | 82 | 20 | 6 | + 30CrMo | |
| CNG2-G-406-110-20B | 110 | 1100 | 90 | 20 | 6 | + 30CrMo | |
| CNG2-G-406-120-20B | 120 | 1180 | 98 | 20 | 6 | + 30CrMo | |
| CNG2-G-406-200-20B | 200 | 1850 | 152 | 20 | 6 | + 30CrMo | |
CNG-3 Aluminum Liner Fully Wrapped CNG Cylinder for Vehicle | |||||||
| Model | Liner O.D. | Composite O.D. | Water capacity | Length | weight | Working pressure | |
| mm | mm | lts | mm | kgs | bar | ||
| CNG3-345-50-20A | 329 | 345 | 50 | 790 | 24 | 200 | |
| CNG3-345-70-20A | 70 | 1040 | 30.6 | ||||
| CNG3-345-80-20A | 80 | 1165 | 34 | ||||
| CNG3-345-90-20A | 90 | 1290 | 37.3 | ||||
| CNG3-345-100-20A | 100 | 1415 | 40.6 | ||||
| CNG3-404-70-20A | 384 | 404 | 70 | 805 | 32.4 | ||
| CNG3-404-80-20A | 80 | 895 | 35.5 | ||||
| CNG3-404-90-20A | 90 | 985 | 38.6 | ||||
| CNG3-404-100-20A | 100 | 1075 | 39 | ||||
Packaging & Shipping
Nude packing with protectin plastic net or Nylon bag.
Our Services
OEM service available, customer brand offered.
FAQ
Payment term: 40% T/T deposit, 60% T/T against B/L copy. Or 100% Irrevacalbe L/C at sight
Delivery time: usually within 30 days after the receipt of firm order
