原産地: | 中国(本土) | 電圧: | 380v/220v | 適用: | 油圧式圧着機チューブ | 製品容量: | セット100/week | 銘柄: | qtd | モデル番号: | チューブdx-68油圧式圧着機 | 重量: | 260キロ | タイプ: | 油圧式圧着機チューブ | 力(W): | 3kw/2.2kw | 認証: | iso | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 条件: | 新しい | 管材料: | ゴムとスチール | 保証: | 1年間 | 次元(L*W*H): | 850*830*860mm | タイプ: | ホースアセンブリホース圧着機 | 圧着径: | 『1/4~2" | 色: | 青、 赤、 あなたの条件のために | が死ぬ: | ダイスの10セット | モデル: | Dx-68 | ボリューム: | 850*830*860mm | 重量: | 260キログラム | 名: | 油圧式圧着機チューブ | 使用される: | コネクト金具とホース | 動作電圧: | 380vと220v |
包装

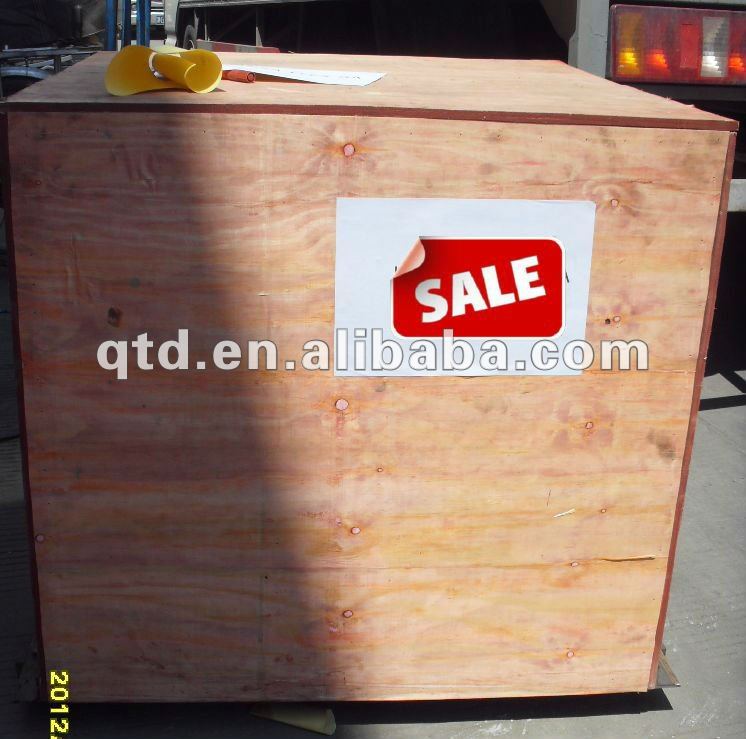

包装: | この詰めhhydraulicチューブ圧着機木製のケースにまたはあなたの条件として |
big promotion!! DX68 6~51mm hydraulic crimping machine tube:
The profile of hydraulic crimping machine tube DX-68:
Tianjin Qiantongda Rubber & Products Trading Co.,Ltd is one of the leading manufactures of rubber hoses, hydraulic crimping machine tube and seal parts in China. Our products are characterized with excellent quality, competitive price, good market and long life.
If you are interested in our products or have other products you would like to import, please feel free to contact us with your requirements. We look forward to providing you with high quality products, superior customer service and complete satisfaction.
We sincerely hope that we can establish mutual pleasant and everlasting business relationship with your esteemed company. With the most competitive price, promptly delivery and first-level service, we wish for a prospective and brilliant future.
The technical date of our hydraulic crimping machine tube DX-68:
Crimping range | 6mm-51mm/1/4"~2" |
The largest crimping pressure | 449T |
Rular precision | 0.02mm |
Rated pressure | 31.5 Mpa |
Oil pump out-let quantity | 5ml/rad/3kw(380v) 2.5ml/r/2.2kw (220v) |
Dimension | 830*850*860mm |
Weight | 260kg |
Crimping per hour | 850 stoke/hour |
Oil tank | 60~65L |
Dies | 10 sets |
Min order | 1 unit |
Package | Wooden case |
Payment terms | By t/t,western unio, L/C... |
Delivery time | We have the new machines at stock now |
Port | Tianjin,china |
Production | 200units one month |

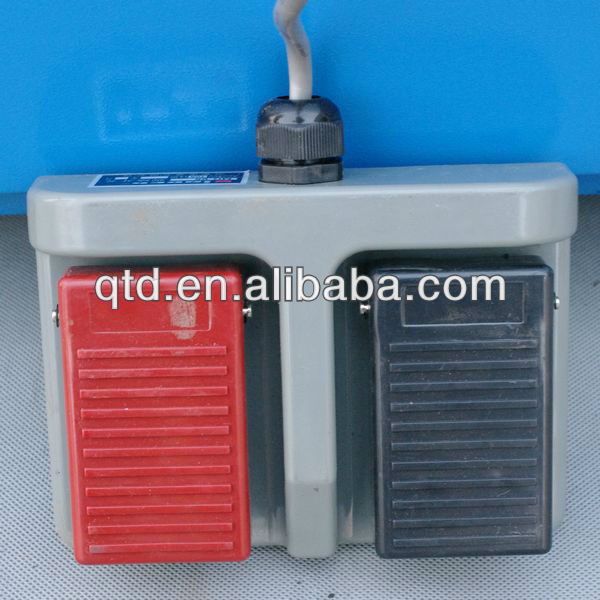

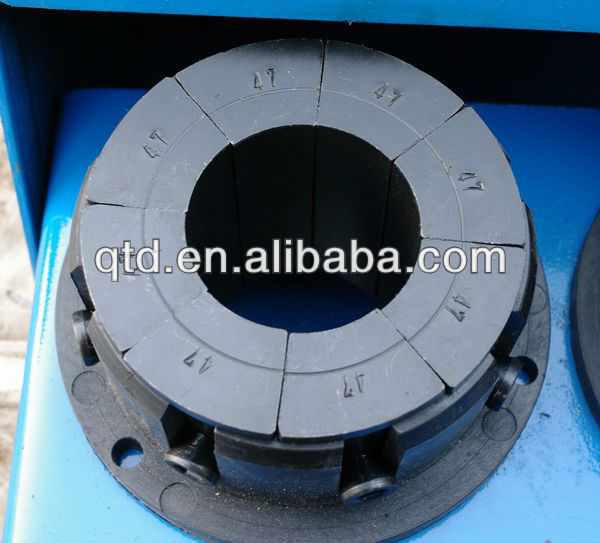

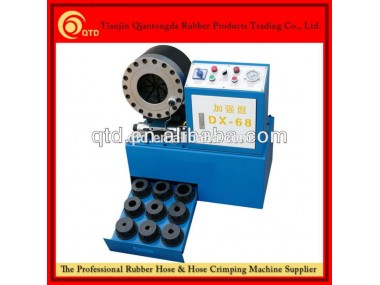

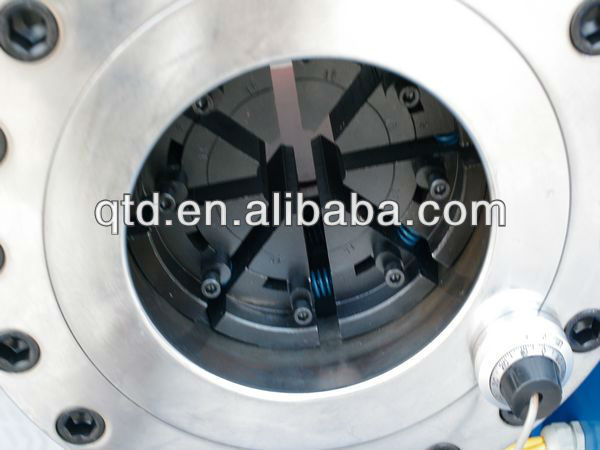

The photos of our hydraulic crimping machine tube DX-68:
Notices of hydraulic crimping machine tube
1. When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.
2. Prevent tool and other foreign matter from entering the locking head.
3. After the work is finished for each time, the eight-block mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.
4. When working, the hand should not stretch into the locking head.
5. The power supply must be switched off when maintenance is done.
Discount of hydraulic crimping machine tube
If you order 2 sets or more, the price will have a discount
If you order 5 sets or more, the price will have a big discount !
Welcome to your any enquiries.
If you are interested in our hydraulic crimping machine tube, please feel free to contact with me.
