| 原産地: | 中国(本土) | 銘柄: | オールスター | モデル番号: | Zgm-fy | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 状態: | 新しい | 色: | あなたの要求として | 証明書: | ・cebv | 保証: | 1年 | 管材: | 金属 | 長さ: | 12メートル | ワイト: | 8t |
包装
| 包装: | 海上輸送に適した、 通常1140gpコンテナにロードされたセット |
Rainwater down pipe roll forming machine
1.Main technical parameter
a. Raw material spec: 0.5-0.8mm colored steel plate or aluminium plate
b. Type of the Pipe: Round/Square Down Pipe
c. Main motor power: 3kw
d. Hydraulic station power:7.5kw
e. Forming speed: 8-10m/min
f. Forming stations: 20
g. Brand of PLC: Panosonic PLC
h. Dimension: 6000*850*1300 mm
i. Total Weight: 9 T
2.Main accessories
1 | Decoiler(manual or hydraulic for options) | 1 set |
2 | Main Forming Machine | 1 set |
3 | Hydraulic Station | 1 set |
4 | Hydraulic Cutting | 1 set |
5 | PLC Control System | 1 set |
6 | Run Out Table | 1 set |
3. Work flow
Decoiling --- Coil sheet guiding and feeding --- Roll forming ---
Cut to length --- Product packaging

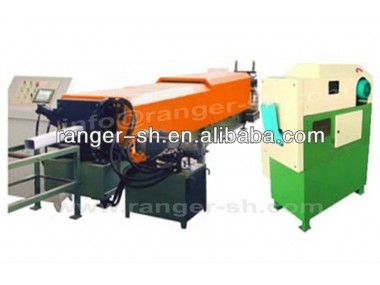

4.Reference pictures
Our company is a high-tech enterprise and key privately-owned enterprise of SHANGHAI, which is one of first Chinese manufacturers specialized in desing and manufacturing various cold roll forming machines and subsidiary machinery.
Sincerely wish to establish a long-run business relationships with friends both at home and abroad, to create a brighter future.
