| ドライブモード: | エンジンのバイブレーター | 原産地: | 中国(本土) | 条件: | 新しい | タイプ: | 内部 | 頻度: | 120000r/min | エンジンタイプ: | 空冷、単気筒、4ストローク | 振動周波数: | 12000r/min | 回転速度のエンジン: | 3600r/min | バイブレーターヘッドカップリングタイプ: | 日本タイプ、マレーシアタイプ、中国タイプ | 直径のバイブレーターヘッド: | 25/28/32/38/45/50/60/70ミリメートル | 長さのバイブレーターホース: | 4/5/6/7/8/9/10/11/12メートル |
包装
| 包装: | ガソリンエンジンロビンコンクリートバイブレーター: カントンパッケージ |

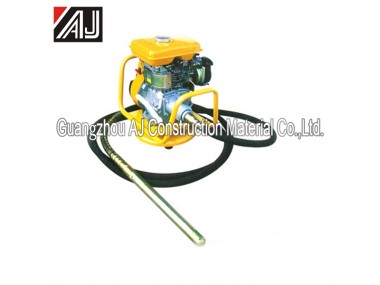

Good Quality!!! New Gasoline Engine Robin Vibrator for Concrete, Guangzhou Manufacturer
Usage:
Concrete vibrator is used to consolidate cement and remove all the trapped air bubbles to give you the toughest cement possible, widely used in construction, transportation, water conservancy, port, mine and metallurgy, etc. It can be adapted to every type of application, vibrator heads and shafts can be easily combined and rapidly exchanged to match the right equipment to the job
Performance:
The cement vibrator shaft can be driven by electric motor or gasoline engine, with the advantage of good mechanical performance, stable operation, low noise, good anti-wear performance, and can reduce working costs and labor force very well, widely used in construction work
Main Technical Parameters:
| Model | AJCV-1 | AJCV-2 | AJCV-3 |
| Engine | Honda GX160 | Robin EY20 | Lifan168F |
| Engine Power | 5.5HP | 5.0HP | 5.5HP |
| Engine Type | Air-cooled,Single cylinder,Four Stroke | ||
| Vibration Frequency | 12000r/min | ||
| Rotation Speed of Engine | 3600r/min | ||
| Vibrator Head Coupling Type | Japan Type,Malaysia Type,Chinese Type | ||
| Diameter of Vibrator Head | 25/28/32/45/50/60/70mm | ||
| Length of Vibrator Hose | 4/5/6/7/8/9/10/11/12m | ||
| N.W/G.W | 22KG/23KG | 23KG/24KG | 22KG/23KG |
| Packing Dimension of Host Machine | 520×400×450mm | 510×400×510mm | 520×390×440mm |
| Packing Dimension of Vibrator Hose | 840×840×60mm | ||
Gasoline Engine Brand: Honda,Robin, Lifan
