| 原産地: | 中国(本土) | 銘柄: | 地図電源 | 移動タイプ: | ホイール・ローダ | モデル番号: | 920 | タイプ: | フロントローダ | 保証: | 2000作業時間 | 条件: | 新しい | 認証: | ce | 寸法 （長さ×幅×高さ）: | 5850 × 2050 × 2860ミリメートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 定格負荷: | 2000キログラム/2トン | 色: | すべての色 | エンジン: | yto 4108/柴4105 | ドライブ: | 4 × 4ホイール | moq: | 1単位/ユニット | バケット容量: | 1.2m3 | ポート: | 青島 | 包装の詳細: | 2単位で1 ' hqコンテナ | 支払条件: | t/t l/c | 供給能力: | 200単位/単位あたり月 |
包装
| 包装: | 1 40の2単位 HQの容器 |

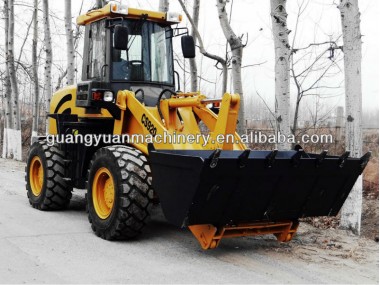

Best price Mini wheel Loader ZL20
1)Rated load: 2000kg
2)Rated bucket capacity:1.2CBM
3)Joystick A/C
4)Quick hitch
Multi-function Wheel Loader 2.0 Ton can be with Snow Blade, Snow bucket ,Pallet fork , Grapple fork ,4 in 1 Bucket ,Baler,
Grader, road sweeping machine,snow blower,light bucket ,auger and etc.
Wheel loader 2.0Ton equip with :hydraulic 280 torque converter,3-way pilot control,adjustable steering wheel,quick hitch,
luxury seat,new cabin with warm and new engine cover,bigger tire
Overall Dimension | ||
1 | Length(with bucket on ground) | 5850(mm) |
2. | Width(to outside of wheels) | 2050(mm) |
3 | Height(To the top of the cab) | 2860(mm) |
4 | Wheel base | 2400(mm) |
5 | Tread | 1640(mm) |
6 | Min. ground clearance | 310(mm) |
Main Technical Specification | ||
1 | Rated load | 2000(Kg) |
2 | Operating weight | 5800KG |
3 | Rated bucket capacity | 1.2(CBM) |
4 | Bucket type | Heavy-duty bolt teeth |
5 | Max. breakout force | 51kN |
6 | Max. dump clearance | 2950(mm) |
7 | Min. turning radius | 5251mm |
8 | Driving system | Hydraulic converter |
9 | Traveling speed(Km/h) | 2 forward and 2 reverse |
Diesel engine | ||
1 | Model | YTO 4108/WeiChai 4105 |
2 | Type | In-line arrangement. Water cooling |
3 | Rated output | 60(kW)/58KW |
4 | Inter-bore of cylinder/stroke | 105×125mm |
5 | Rated speed | 2400(r/min) |
6 | Max. Torque | 275(N.M) |
7 | Starting type | Electric |
8 | Min. specific fuel consumption | 235(g/Kw.h) |
Transmission System | ||
(A)Torque Converter | ||
1 | Model | YJ280 |
2 | Type | Fixed-spindle power shift |
3 | Cooling type | Pressure oil circulating |
(B)Transmission case | ||
1 | Model | MAP |
2 | Type | Power shift, spur gear constantly in mesh |
3 | Gear shift position | 2 Forward and 2 reverse gears |
(C)Axle and Tire | ||
1 | Type of main reducer | spiral bevel gear, single stage |
2 | Size of tire | 20.5/70-16,16.70-20 for optional |
Brake system | ||
1 | Service brake | Air assisted oil on four wheel |
2 | Parking brake | Hand operated |
Steering System | ||
1 | Type | Middle articulated frame with hydraulic power steering |
Weifang Map Power is real factory to produce all kinds of wheel loaders, such as: ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.
Wheel loader Usage
The ZL20 /920 wheel loader is used for loading or transporting sands, coal ,sandstone and so on for road construction, environmental sanitation, small and medium-sized civil engineering, or in the station, warehouses and other places. The wheel loader can be combined with auto truck of 3-5tons to load and unload goods, and can conduct bulldozing, digging hoisting and other operations.
