• フロントドーザブレード と リア リッパー スカリ用中国モータグレーダ GR215発売中-モーターグレーダー
    商品番号: 13256046
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: xcmg モデル番号: GR215
    重量: 16500キログラム 条件: 新しい 認証: ce
    次元(L*W*H): 8970 × 2625 × 3470ミリメートル 逆の速度(km/h): 23 前方速度(km/h): 38
    提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため 色: イエロー/ホワイト 土工板幅×高さ: 4270 × 610ミリメートル
    マックス。リフト地上: 450ミリメートル マックスブレード位置角: 90 ° 牽引力: 90Kn
    マックス。深さの切断: 500ミリメートル タイヤ膨張圧力: 260KPa 作動油圧pessure: 18MPa
    マックス。登坂能力: 30% 伝送圧力: 1.3〜1.8MPa

    包装

    包装: 輸出標準に詰め 40hq コンテナ
    Product Description

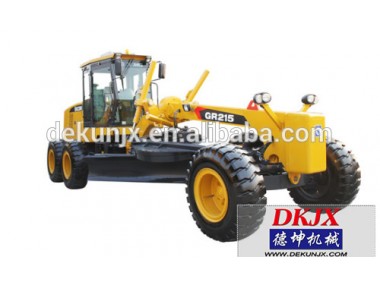

     Front Dozer And Rear Ripper Scarifier For China Motor Grader GR215 On Sale



    Applications:



    The XCMG GR series Motor Grader are mainly used in ground leveling, canalling, slope scraping, earthmoving, scarification or snow removal work on road, airfield, farmland and so  on.

    They are neccessary constrution machines for national defense engineering,mine construction, town and country roads building and farmland improvement.



    Technical specification:





    ModelGR215
    Basic specification
    Engine modelCTAA8.3/6CTA8.3
    Rated power/speedkw/rpm153/2200     160/2200
    Dimension (LxWxH)MM87902625x3470
    Operating weightkg16500
    Performance specification
    Travelling speed,forwardkm/h5,5,11,19,23,38
    Travelling speed,reversekm/h5,11,23
    Tractive forcekN90
    Max.gradeability%30
    Tire inflation pressurekPa260
    Working hydraulic pressureMpa18
    Transmission pressureMpa1.3~1.8
    Operating specification
    Max.steering angle of front wheels°left/right 50
    Max.lean angle of front wheels°left/right 17
    Max.oscillation angle of front axle°left/right 15
    Max.oscillation angle of balance box°left/right 15
    frame articulation angle°left/right 27
    Min.turning radius using articulationm7.3
    Blade
    Max. lift above groundmm450
    Max.depth of cuttingmm500
    Max.blade position angle°90
    Blade cutting angle°28~70
    Circle reversing rotation°360
    Moldboard width x heightmm4270610
    Packaging & Shipping
