| 原産地: | 中国(本土) | 銘柄: | xcmg | モデル番号: | GR180 | 重量: | 15400キログラム | 条件: | 新しい | 認証: | iso、ce | 次元(L*W*H): | 8900 * 2625*3470ミリメートル | 逆の速度(km/h): | 23 | 前方速度(km/h): | 38 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 最大リフト地上: | 450ミリメートル | 最大深さの切断: | 500ミリメートル | 土工板widthxheight: | 3965 × 610ミリメートル | 作動油圧圧力: | 18mpa | 牽引力: | 84kN | マックス。グレード能力: | 30% | タイヤinflaction圧力: | 260kPa | 伝送圧力: | 1.3〜1.8Mpa | オプション部分: | フロントドーザブレード/リアリッパー/カミンズエンジン | 色: | イエロー/ホワイト/としてあなたの好き |
包装
| 包装: | ヌードによって詰め40hqコンテナ。 |

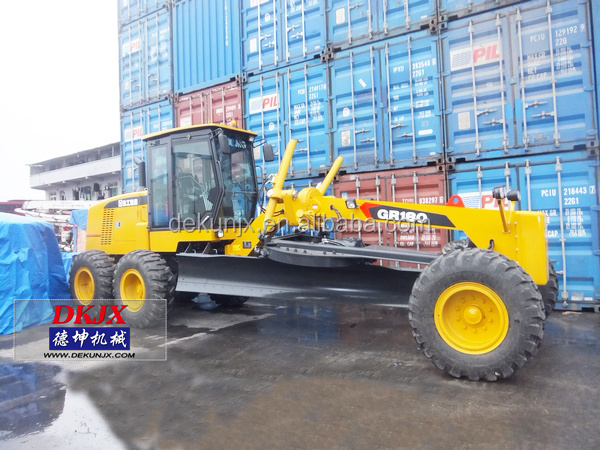

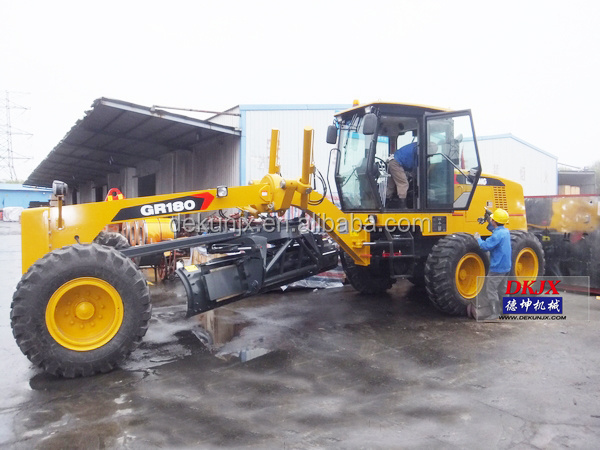

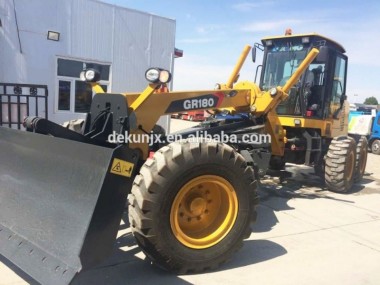

Cheap Price XCMG 180HP Motor Grader Tires Used
The XCMG GR series Motor Grader are mainly used in ground leveling, canalling, slope scraping, earthmoving, scarification or snow removal work on road, airfield, farmland and so on.
Widely used in highway, airport, grader and other large area ground smooth operation. Grader has a wide range of auxiliary operation ability, because it is the scraper plate can finish 6 degrees motion in space. They can be alone, also can be combined. Grader in subgrade construction, provide enough for roadbed strength and stability. Its main method in the subgrade construction have the ground operation, brush, filling embankment slope assignments.
Technical parameters:
| Model | GR180 | ||
| Basic specification | |||
| Engine model | CTAA8.3/SC8D170G2B1 | ||
| Rated power/speed | kw/rpm | 138/2200 140/2300 | |
| Dimension (LxWxH) | MM | 89002625x3470 | |
| Operating weight | kg | 15400 | |
| Performance specification | |||
| Travelling speed,forward | km/h | 5,8,11,19,23,38 | |
| Travelling speed,reverse | km/h | 5,11,23 | |
| Tractive force | kN | 84 | |
| Max.gradeability | % | 30 | |

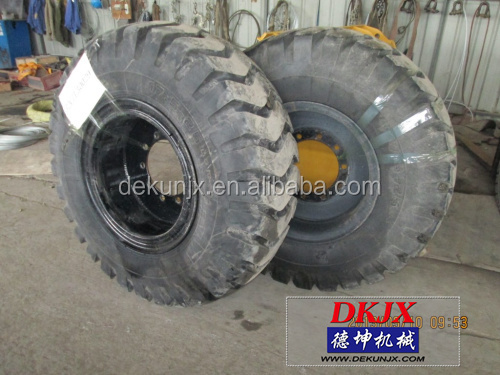

| Tire inflation pressure | kPa | 260 | |
| Working hydraulic pressure | Mpa | 18 | |
| Transmission pressure | Mpa | 1.3~1.8 | |
| Operating specification | |||
| Max.steering angle of front wheels | ° | left/right 50 | |
| Max.lean angle of front wheels | ° | left/right 17 | |
| Max.oscillation angle of front axle | ° | up/down 15 | |
| Max.oscillation angle of balance box | ° | front/back 15 | |
| frame articulation angle | ° | left/right 27 | |
| Min.turning radius using articulation | m | 7.3 | |
| Blade | |||
| Max. lift above ground | mm | 450 | |
| Max.depth of cutting | mm | 500 | |
| Max.blade position angle | ° | 90 | |
| Blade cutting angle | ° | 28-70 | |
| Circle reversing rotation | ° | 360 | |
| Moldboard width x height | mm | 3965x610 | |

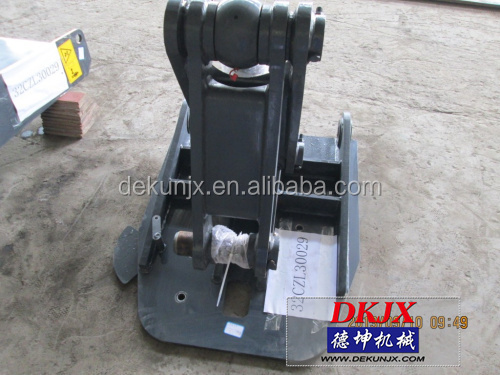

With the optional parts:
1) automatic leveling device: optional imported or domestic automatic ultrasonic, laser leveling system.

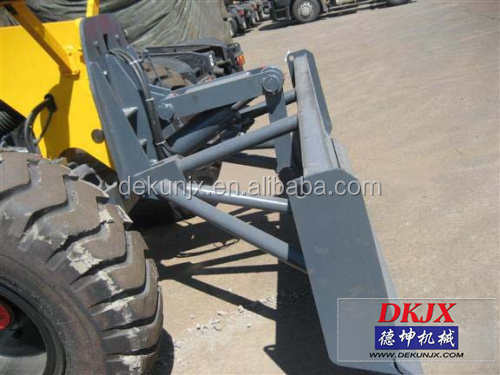

2) before the plow

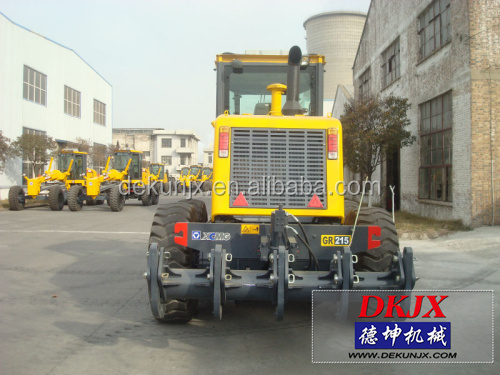

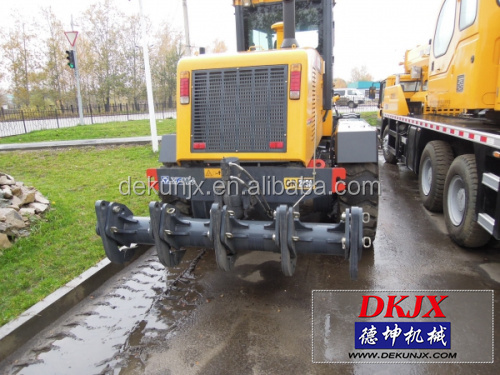

3) after the scarifier
4) hydraulic pull pin
6) the roll bridge
6) scarification rake
7) heavy blade
