原産地: | 中国(本土) | 銘柄: | xcmg | モデル番号: | gr180 | 重量: | 15400キログラム | 条件: | 新しい | 認証: | ce | 次元(L*W*H): | 8900 × 2626 × 3470 | 逆の速度(km/h): | 23 | 前方速度(km/h): | 38 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 最大リフト地上: | 450ミリメートル | 最大深さの切断: | 500ミリメートル | 土工板widthxheight: | 3965 × 610ミリメートル | 作動油圧圧力: | 18mpa | 牽引力: | 84kN | マックス。グレード能力: | 30% | タイヤinflaction圧力: | 260kPa | 伝送圧力: | 1.3〜1.8Mpa | オプション部分: | フロントドーザブレード/リアリッパー |
包装
包装: | ヌードに詰め40hqコンテナ |

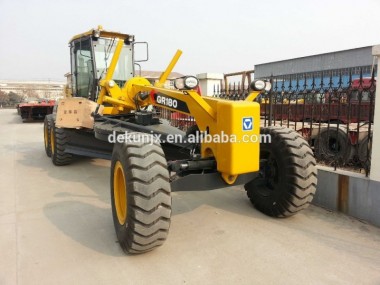

180hp XCMG motor drive road greaders gr180 for sale
Technical parameters:
Model | GR180 | ||
Basic specification | |||
Engine model | CTAA8.3/SC8D170G2B1 | ||
Rated power/speed | kw/rpm | 140/2300 | |
Dimension (LxWxH) | MM | 89002625x3470 | |
Operating weight | kg | 15400 | |
Performance specification | |||
Travelling speed,forward | km/h | 5,8,11,19,23,38 | |
Travelling speed,reverse | km/h | 5,11,23 | |
Tractive force | kN | 84 | |
Max.gradeability | % | 30 | |
Tire inflation pressure | kPa | 260 | |
Working hydraulic pressure | Mpa | 18 | |
Transmission pressure | Mpa | 1.3~1.8 | |
Operating specification | |||
Max.steering angle of front wheels | ° | left/right 50 | |
Max.lean angle of front wheels | ° | left/right 17 | |
Max.oscillation angle of front axle | ° | up/down 15 | |
Max.oscillation angle of balance box | ° | front/back 15 | |
frame articulation angle | ° | left/right 27 | |
Min.turning radius using articulation | m | 7.3 | |
Blade | |||
Max. lift above ground | mm | 450 | |
Max.depth of cutting | mm | 500 | |
Max.blade position angle | ° | 90 | |
Blade cutting angle | ° | 28-70 | |
Circle reversing rotation | ° | 360 | |
Moldboard width x height | mm | 3965x610 |
Detailed Images
