• 熱い販売の! ブランドの新しいxcmggr16515トンカミンズエンジンとモータグレーダ-モーターグレーダー
    商品番号: 13254160
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: xcmg モデル番号: GR165
    重量: 15ton 条件: 新しい 認証: sgs、ciq
    次元(L*W*H): 8900*2625*3470ミリメートル 逆の速度(km/h): 23 前方速度(km/h): 38
    提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため 色: イエロー

    包装

    包装: 1.ヌードパッキングによってローロー船の2.によって140 hqコンテナ。

                                                              XCMG Motor Grader GR165

     Main Description:



    Engine Shangchai or Cummins 170HP
    Operating weight 15t
    Moldboard width*height 3965*610mm
    Dimension(L*W*H)8900*2625*3470mm
    imported hydraulic parts



    Optional Parts:
    1. Front blade
    2. Rear ripper

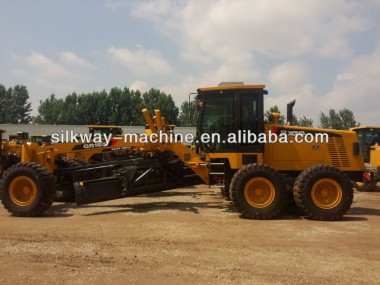

    Photo:

    熱い販売の! ブランドの新しいxcmggr16515トンカミンズエンジンとモータグレーダ




    Detail Description:



    Basic specification

    Engine modelD6114
    Rated power/speed125kW/2300rpm
    Dimension(LxWxH)8900×2625×3470mm
    Operating weight(Standard)15000kg

    Performance specification

    Travelling speed ,forward5,8,11,19,23,38 km/h
    Travelling speed ,reverse5,11,23 km/h
    Tractive force(f=0.75)77KN
    Max. gradeability20%
    Tire inflation pressure260 kPa
    Working hydraulic pressure16 MPa
    Transmission pressure1.3~1.8MPa

    Operating specification

    Max. steering angle of front wheels±50°
    Max. lean angle of front wheels±17°
    Max. oscillation angle of front axle±15°
    Max. oscillation angle of balance box15
    frame articulation angle±27°
    Min. turning radius using articulation7.3m
    Biade
    Maximum lift above ground450mm
    Maximum depth of cutting500mm
    Maximum blade position angle90°
    Blade cutting angle28°—70°
    Circle reversing rotation360°
    Moldboard width X height3965×610mm





    Any questions, pls feel free to contact us!
