| 原産地: | 中国(本土) | 銘柄: | xcmg | モデル番号: | gr215 | 重量: | 16.5t | 条件: | 新しい | 認証: | iso | 次元(L*W*H): | 8970*2625*3470mm | 逆の速度(km/h): | 23 | 前方速度(km/h): | 38 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | エンジンパワー: | 215hp | 刃幅: | 4270mm | は、 作業重量: | 16.5トン | オプション: | フロントブレードとリアのリッパー |
包装
| 包装: | 各ユニットに入れることができ140hqコンテナ; |
XCMG GR215 Motor Grader
1, Main Features
GR series of motor grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing, scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement.
Basic specification | |
Engine model | 6CTAA8.3-C |
Rated power/speed | 153kW/2200rpm |
Dimension(LxWxH) | 8970×2625×3470mm |
Operating weight(Standard) | 16500kg |
Performance specification | |
Travelling speed ,forward | 5,8,11,19,23,38 km/h |
Travelling speed ,reverse | 5,11,23 km/h |
Tractive force(f=0.75) | 82KN |
Max. gradeability | 20% |
Tire inflation pressure | 260 kPa |
Working hydraulic pressure | 16 MPa |
Transmission pressure | 1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±50° |
Max. lean angle of front wheels | ±17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | Front / Rear 15 |
frame articulation angle | ±27° |
Min. turning radius using articulation | 7.3m |
Blade | |
Maximum lift above ground | 450mm |
Maximum depth of cutting | 500mm |
Maximum blade position angle | 90° |
Blade cutting angle | 28°—70° |
Circle reversing rotation | 360° |
Moldboard width X height | 4270×610mm |

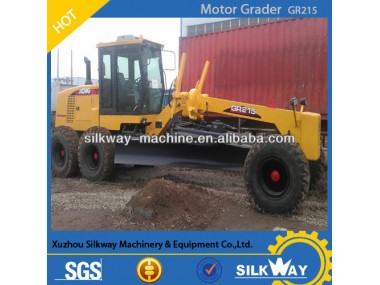

2, Referance photos
