| 原産地: | 中国(本土) | エミッション規格: | ユーロ3 | 銘柄: | dongfeng | 条件: | 新しい | 伝達タイプ: | 手動 | モデル番号: | CLW5141GSS3 | 寸法 (L x W x H) (mm): | 82002480x3050 | 総車高: | 14490 | タンク容積: | <5000L | エンジン容量: | 4 - 6L | 燃料: | ディーゼル | ドライブ車輪: | 4x2 | 区域(m)を振りかけること: | 8 - 12m |
包装
| 包装: | 大きさまたはロール船 |

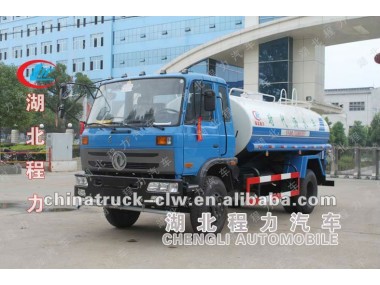

Famous Dongfeng 15Ton Street Flusher Truck
The main parameter list:
Product | CLW5141GSS3 water truck |
|
Cubage(T) | 10-15 |
|
Vehicle parameters | Overalldimension length/width/height (mm) | 8200×2480×3050 |
Gross weight (kg) | 14490 | |
curb weight(kg) | 7295 | |
Frontsuspension/rearsuspension (mm) | 1205/2495 | |
Approach/departure angle | 28/12 | |
Max speed | 90 | |
Vehicle Description Section | Tank effective volume: 12 cubic meters; tank dimensions (length / axis / short axis) (mm): 5000×2100×1350. Optional chassis cab with flat top. | |
Chassis | Chassis model | EQ1141KJ |
Wheelbase (mm) | 4500 | |
Front tread | 1940 | |
Rear tread | 1860 | |
Tyre specification | 10.00-20,10.00R20 | |
Fuel type | Diesel | |
Engine parameters | Engine | ISBE185 30 YC6J180-30 ISDe180 30 YC6J180-33 B190 30 |
Exhaust/ Power (ml/kw) | 6500/132 | |
Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd | |
Special function | Watering width | ≥15 |
Watering gun range | ≥28 | |
Vertical suction range | ≥7 | |
Pump lift | 90m | |
Detailed description:
1 CLW5141GSS3 water truck Sprinkles standard configuration: former blunt sprinkling, take lateral jet after sprinkled with tank after, after work platform, platform after install greening sprinkling, guns regt can rotate 360 degrees, but even after adjusting heavy rain, rain, drizzle, mist shape, straight strong shape, range 30 meters. Take self-priming, since row function, take fire interface, with their valves, install screen.
2 CLW5141GSS3 water truck oblique configuration: medicine dish, medication pumps, anticorrosion, tank intersectorial inlet and outlet water joint, solenoid valves, pneumatic valves, etc.
