原産地:	中国(本土)	銘柄:	szgh	適用:	フライス盤
条件:	新しい	モデル番号:	CNC990MDb-3	重量:	10キログラム
認証:	ce	次元(L*W*H):	400*245*120ミリメートル	i/o:	24入力、24出力
最小入力ユニット::	0.001ミリメートル	最大入力ユニット::	±99999。999ミリメートル	サポート追加のパネル:	いいえ
ハンドル機能:	サポート外部ハンドル	機能:	plc + atc	ユーザー店ルーム:	32メガバイト
番号の制御軸:	x、y、z 3軸	サポートplcプログラム変更:	はい	cpu:	32ビット

包装

包装:	でカートン すべての個1カートン として標準パッケージのszgh

   min cnc controller mach3 of milling control system Product Description

     SZGH-CNC990MDb-3 is three axis milling CNC system with 8 inch LCD, high performance and specialized in application of Drilling &Milling machine, adopt standard international G code edit program, support macro and automation operation function. Usually applied in big milling equipment.



Feature:

1) 8 Inch color LCD display (800600)

2) Elastic trapping

3) ATC function and PLC function4) Network transmission5) ARM 9 CPU6) 3D simulation preview7) Support 4 axis servo/stepper motor control8) Position feedback function

10)  Display in Chinese, English etc.,

11) Maximum any 4 axis linear continuous interpolation

12) It is mircosoft-program.it is similar to PLC. Can do a lot of logic control and axes control .maximum 6axies controls

13) Support feeding axis function

14) Rapid traverse

15) Be able to adjustment from F0-150%,total 15 levels, real time, rapid traverse and feeding are use the same switch

16) Interpolation mode: linear, arc and spiral interpolation and rigid tapping

17) Use linear type acceleration and deceleration by symmetrical

18) Spindle override: 0-150% total 15 levels, real-time adjustment

19) Support tool function : such as:

Tool length compensation

Tool radius compensation

Tool wearing compensation

Tool life management

20) Precision backlash compensation and Pitch error compensation in memory type

21) RS232 and USB communication function:

RS232: Files of part program and parameter, etc can be transmitted in two-way, DNC real-time processing, support serial ports of system software upgrade.

USB: File operation, directly processing files, system software upgrade in flash disc.

22) Support Safety function, as following:

Emergency stop

Hardware travel limit

Software travel limit

Data restoring and recovering

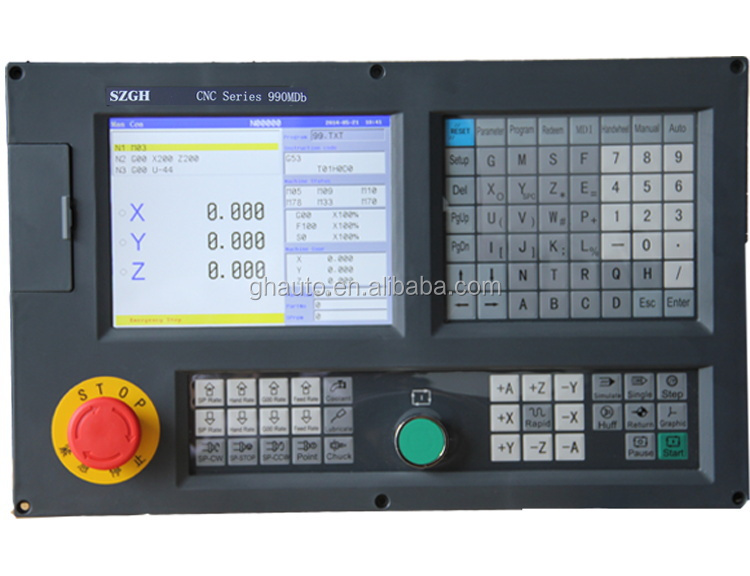

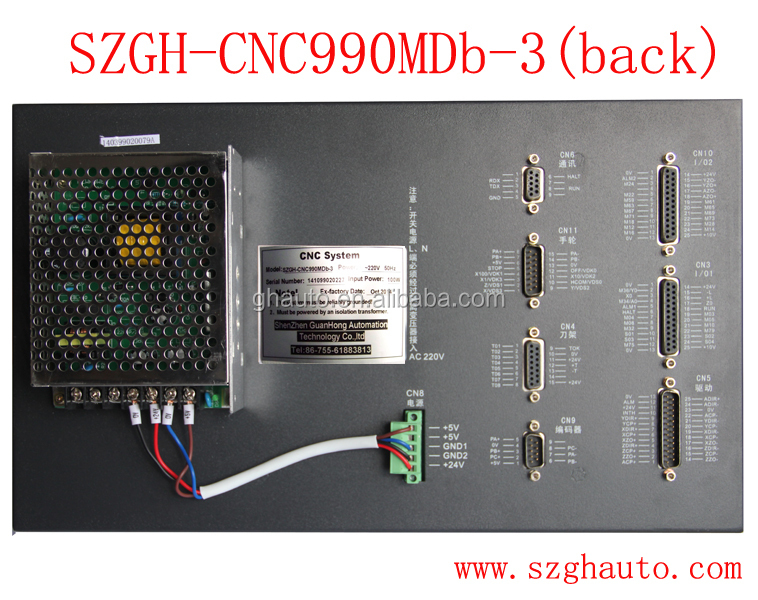

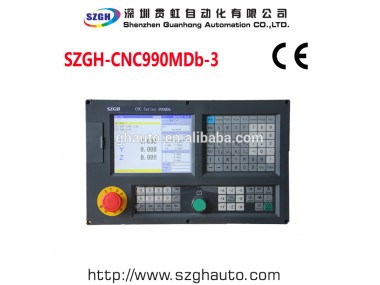

Product Picture
