原産地: | 中国(本土) | 銘柄: | szgh | 適用: | 旋盤とターンセンター | 条件: | 新しい | モデル番号: | CNC1000TDb-2 | 重量: | 10キログラム | 認証: | ce | 次元(L*W*H): | 412*205*120ミリメートル | ユニークな特徴: | 高抗jammingswitch電源 | 表示画面: | 8インチリアルカラーlcd | パネル: | タッチ画面メインとサブパネル | コピーインタフェース: | usb可動uディスク | 機能: | plc + atc | cpu: | 32ビット | メモリ: | 32メガバイト | i/o: | 32*32 | カッターオフセット: | c | 通信モード: | rs232 |
包装
包装: | 標準輸出梱包 |

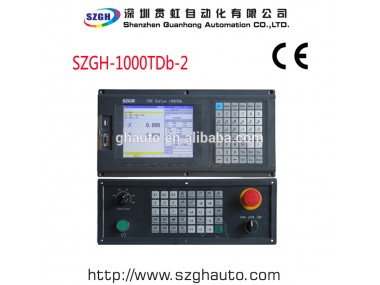

mini cnc lathe control system/micro cnc controller
Product Description
1) 800600 8 inch real color LCD displayer.
2) Support PLC and macro function, and automatic tool exchange function . 3) 32Mb user store room, 2-channel analog 4) 32 input, and 32 output. 5) Touch screen main and sub panel.6) High anti-jamming switch power.7) USB movable U disc copy interface.8) RS232 interface.9) Spindle servo speed control/spindle frequency convenient speed control.10) Max screw processing thread pitch is 1000MM11) 32 bits high performance, low power consumption industrial grade ARM microprocessor. 12) C cutter offset function. Application: CNC lathe machinery; lathe machine center;TDC applied to engraving CNC machine.
