原産地: | 中国(本土) | 銘柄: | szgh | 適用: | フライス盤 | 条件: | 新しい | モデル番号: | CNC1000MDb-5 | 重量: | 11キログラム | 認証: | ce | 次元(L*W*H): | 412*205*120ミリメートル | 色: | グレー | cpu: | 32ビット高パフォーマンス | メモリ: | 64メガバイトメモリ | ユーザー店ルーム: | 32メガバイトユーザー店ルーム | 機能: | fpga + dsp + atc機能 | スピード: | を最高速度は60メートル/分 | i/o: | 32*32 | パネル: | タッチ画面メインとサブパネル | 表示機能: | 640 × 480 8インチリアルカラー液晶表示機能 |
包装
包装: | でcartion、として標準パッケージのszgh |
five axis drilling and milling CNC plasma controller
Product Description
CNC1000MDb is widespread CNC system (matched with machining center and general milling machine) developed by Shenzhen Guanhong Automation CO.,LTD (short name:SZGH ), employed with 32-bit high performance CPU and super-large-scale programmable device FPGA, real-time control and hardware interpolation technology to ensure the system gets the high efficiency with the μm-level precision, and its PLC can be edit on-line, which makes the logic control function become more flexible and strong.
Features:
1)32 bits high performance, low power consumption industrial grade ARM microprocessor. The max speed is 60m/min.
2)64MB memory.
3)32Mb user store room.
4)640480 8 inch real color LCD displayer.
5)Touch screen main and sub panel.
6)High anti-jamming switch power.
7)USB movable U disc copy interface.
8)RS232 interface.
9)Spindle servo speed control/spindle frequency convenient speed control.
10)Manual pulse generator.
System technical parameter:
• controllable axes:X,Y,Z,A,B five axes.
• linkage axes:Arc 2-3 axes, liner 2-5 axes.
• pulse equivalent:X,Y,Z,A,B axes:0.001mm.
• max speed:X,Y,Z,A,B:60000mm/min.
• cutting speed:1-10000mm/min.
• min input unit:0.001mm.
• program size range:± 99999.999.
• 99 tools management.
• program code:ISO-840 international standard.
• program coordinate system definition:ISO-841.
• chassis protection complies with regulation of IP43.
System function:
1) Auto-diagnosis function:
All around diagnosis of CPU, storage, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.
2) Compensation function:
automatic backlash compensation.
tool radius automatic compensation.
tool radius automatic offset and sharp angle transition.
leading screw pitch error automatic compensation.
3) Abundant instruction system:
scaling up/down instruction.
mirror machining instruction.
multiple tool offset instruction.
program cycle, jump, call and different program ending.
multiple positioning instruction:starting point,setting fixed point, etc.
liner, circular, spiral line interpolation instruction.
program management instructions: program cycle, call, transfer and different program ending method, etc.
6 work piece coordinates system .
4) English menu, full screen edition:
Easy operation, convenient viewing.
5) Abundant debugging functions:
it can point out clearly what errors of operation are and guide to correct them.
6) Program changing between CNC system and IBM/PC series compatible computer
it can conduct CAD/CAM/CAPP auxiliary programming by using Pc series compatible computer's abundant software resources,then transfer the CNC program into the system to machining through(USB movable U disc copy port,RS232 port).Likewise it also can transfer the program from system to PC through communication port.
System operation condition
1) Power supplying
AC 220V(+10%/-15%), Frequency 50Hz±2%. power:≤ 200W.
Note:it must use isolation transform to supply power,first input:380V
2) Climate condition
operation condition:temperature 0~45°C,relative moisture 40-80%.
storage & transportation condition:temperature -40~55°C,relative moisture <93%(40°C).
atmosphere pressure:86-106kpa.
3) operation environment :
No excessive flour dust, no acid, no alkali gas and explosive gas, no strong electromagnetic interference.

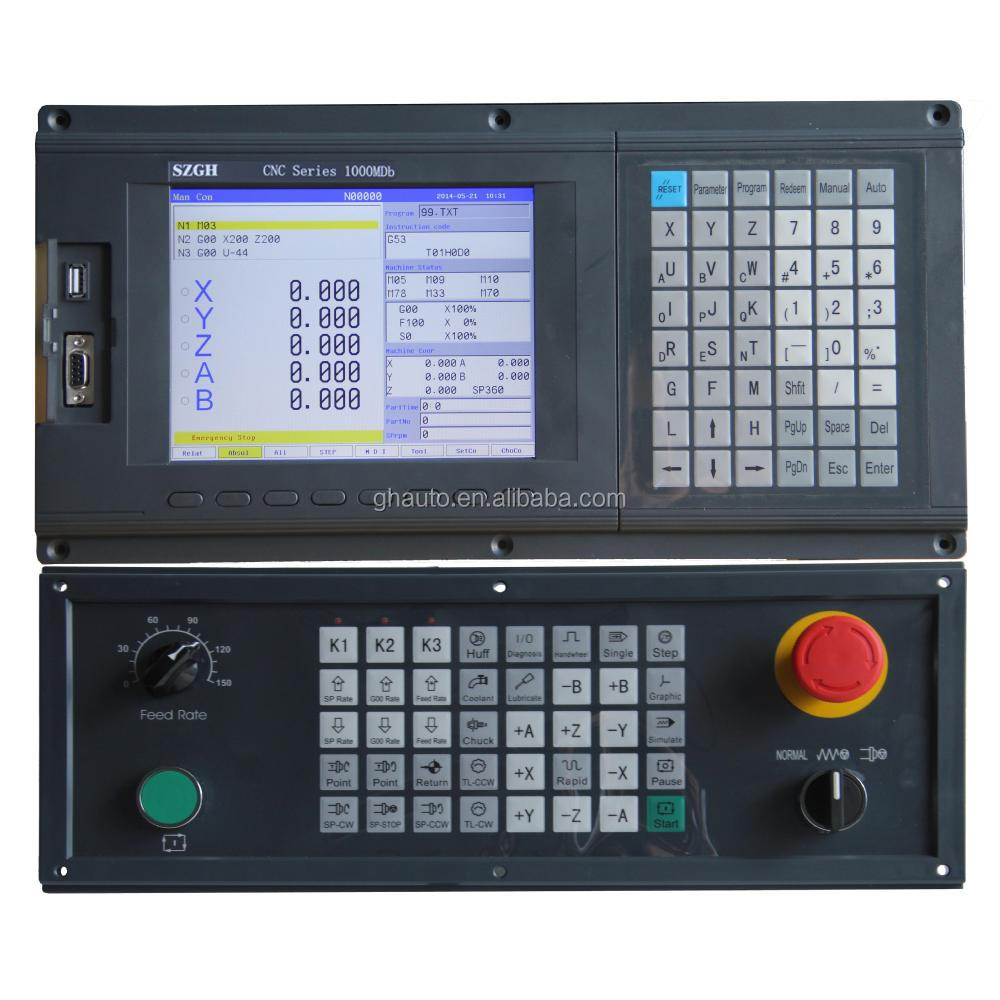

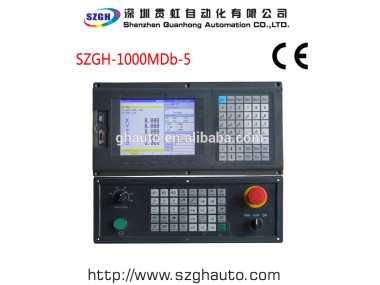

Product Picture
