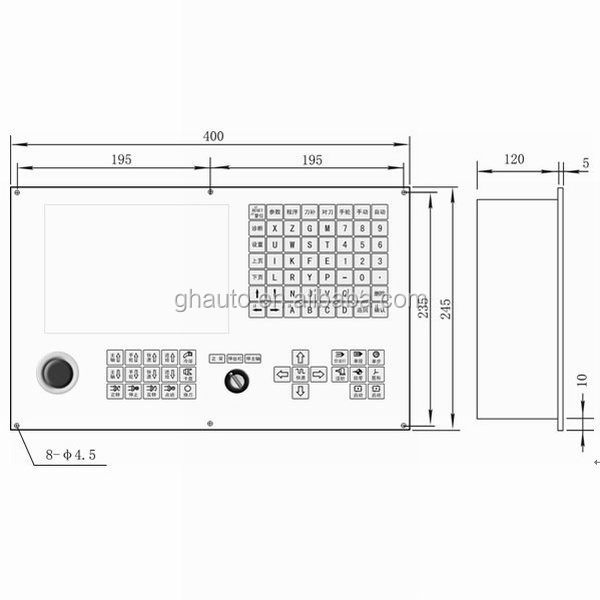

| 原産地: | 中国(本土) | 銘柄: | szgh | 適用: | フライス盤 | 条件: | 新しい | モデル番号: | CNC990MDb-2 | 重量: | 10キログラム | 認証: | ce | 次元(L*W*H): | 400*245*120ミリメートル | メモリ: | 64メートル | ユーザー店ルーム: | 32メガバイト | 通信モード: | rs232 | cpu: | 32ビット | コピーインタフェース: | usb可動uディスク | パネル: | タッチ画面メインとサブパネル | 表示画面: | 640*480 8インチリアルカラー液晶表示機能 | パフォーマンス: | スピンドル周波数convertion速度制御 | 電源: | 高い抗ジャミングスイッチ電源 | 機能: | plc + atc |
包装
| 包装: | でカートン用SZGH-CNC990MDb-2フライスとボール盤cnc制御システム、として標準パッケージのszgh |
powerful 2 axis cnc control system with USB+PLC function
Product Description

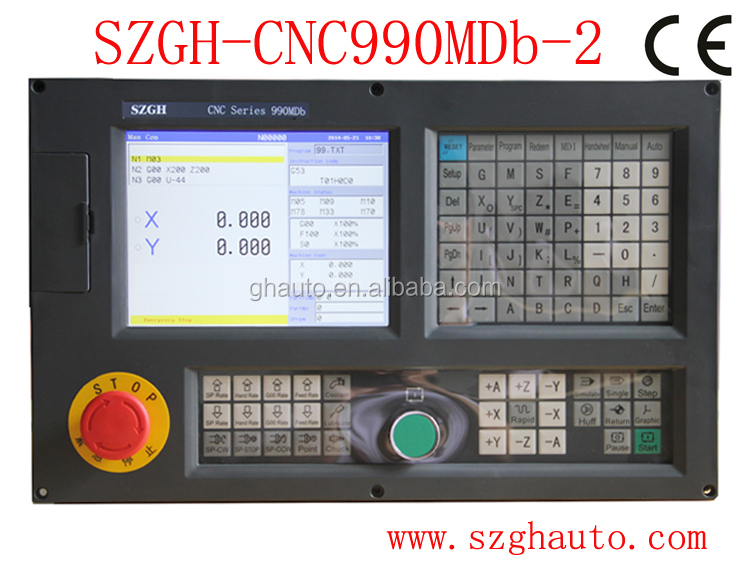

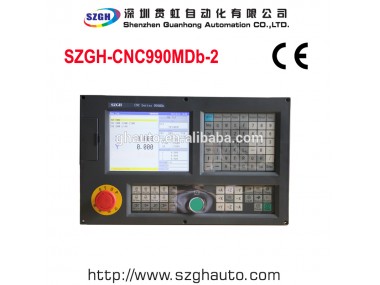

SZGH-CNC990MDb-2 2 axis CNC milling control system is economic type, support 2-channel analog, and C cutter offset, I/O 24X24, PLC,macro function,8 inch display(800600), similar as Fanuc operation method, compatible with all kinds of motor and driver. specialized in application for CNC milling and drilling machinery base on FPGA+ARM, adopt international standard G code programming, support CAM soft processing program by MASTERCAM,UG,TYPE3 etc,. third part . Matching with professional I/O board, reduce connection wire, save certain cost.
Feature:
1) 8 inch display screen (800600), three axis movement, four interpolating axes
2) Added alone servo axis
3) Standard G code programming
4) Be able to control speed smoothly change.
5) Support circular tool magazine, vertical type tool magazine, cylinder tool change and customized tool function.
6) System self checking and diagnosis ,and parameter back-up and recovery function
7) Support USB, Ethernet , series port communication , U flash , SD operation

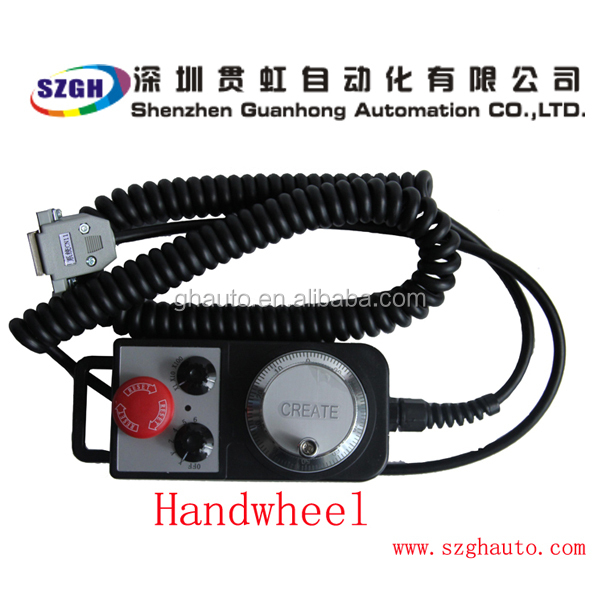

8) Handle box and its G code function
9) Code track previews function
Technical specification:
1) Four axis interpolation and single axis control
2) Plus frequency can arrive to 1 M
3) 56 channel input and 48 channel output port
4) 2 channel 0~10 analogue output control
5) PWM analogue control
6) 256M built-in electric board , support 8G memory.
7) Support mircosoft-program.it is similar to PLC. Can do a lot of logic control and axes control
Application:
metal parts processing ( car/steamship metal processing industry ), glass product ( mobile, TV, computer, electrical switch etc,. glass board proceeding ) , wood furniture etc,. processing produce line (lathe, milling, grinder processing etc)
We can provide total control system!
