| 原産地: | 中国(本土) | 銘柄: | szgh | 適用: | 旋盤とターンセンター | 条件: | 新しい | モデル番号: | CNC990TDb-3 | 重量: | 10キログラム | 認証: | ce | 次元(L*W*H): | 400*245*120ミリメートル | 色: | グレー | h.sコード: | 8537101101 | 表示機能: | 800*600 8インチリアルカラー液晶表示機能 | 機能: | plcとマクロ機能、および自動工具交換機能 | ユーザー店ルーム: | 32メガバイトユーザー店ルーム | スピード: | を最高速度は30メートル/分 | パネル: | タッチ画面メインとサブパネル | 電源: | 高い抗ジャミングスイッチ電源 | コピーインタフェース: | usb可動uディスクコピーインタフェース | i/o: | 24/24 |
包装
| 包装: | でカートン、として標準パッケージのszgh |

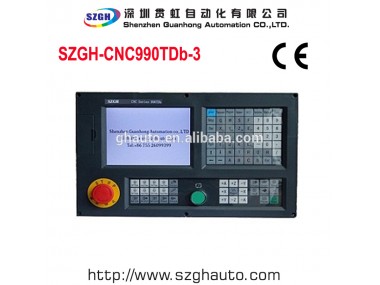

990TDb-3 three axis lathe CNC system is economic type and 800600 7.5 inch real color LCD displayer, base on ARM microprocessor and PDF, support automatic tool change function. Matching with Servo motor and driver , total product solution can be provide by Shenzhen Guanhong Automation CO.,LTD (short name:SZGH ).
Features:
1)Adopt ARM and DSP, FPGA and hardware interpolation technology .
2)The max speed is 20 m/min, feeding speed is 10 m/min
3)32Mb user store room.
4)800600 7.5 inch real color LCD displayer.
5)Touch screen main and sub panel.
6)High anti-jamming switch power.
7)USB movable U disc copy interface.
8)RS232 interface.
9)Spindle servo speed control/spindle frequency convenient speed control.
10)max screw processing thread pitch is 1000MM
Technical specification:
•X,Y ,Z three axis lathe
•liner, circular, spiral line interpolation instruction.
•min input unit:0.001mm.
•program size range:± 99999.999.
•Feeding speed:0.001-10m/min
•Max speed: is 20 m/min
• length Compensation
•tool radius automatic compensation
•RS232 and U flash connection port
•Spindle servo speed control/spindle frequency convenient speed control.
•max screw processing thread pitch is 1000MM
•I/O 24X24 input and output
System operation condition:
1) Power supplying
AC 220V(+10%/-15%), Frequency 50Hz±2%. power:≤ 200W.
Note:it must use isolation transform to supply power,first input:380V
2) Climate condition
operation condition:temperature 0~45°C,relative moisture 40-80%.
storage & transportation condition:temperature -40~55°C,relative moisture <93%(40°C).
atmosphere pressure:86-106kpa.
3) operation environment :
No excessive flour dust, no acid, no alkali gas and explosive gas, no strong electromagnetic interference.

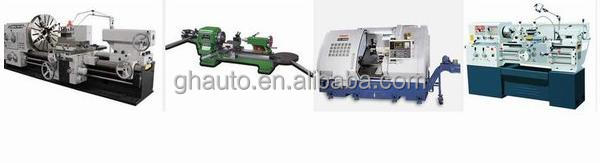

Application: Mini-type special lathe machinery, instrument lathe
