原産地: | 中国(本土) | 銘柄: | szgh | 適用: | フライス盤 | 条件: | 新しい | モデル番号: | CNC990MDb-3 | 重量: | 10キログラム | 認証: | ce | 次元(L*W*H): | 400*245*120ミリメートル | コピーインタフェース: | usb可動uディスク | ユニークな特徴: | 高抗jammingswitch電源 | パネル: | タッチ画面メインとサブパネル | 表示画面: | 8インチリアルカラーlcd | メモリ: | 64メガバイト | cpu: | 32ビット | i/o: | 32*32 | 機能: | plc + atc | カッターオフセット: | c | 通信モード: | rs232 |
包装
包装: | 標準輸出梱包。 |

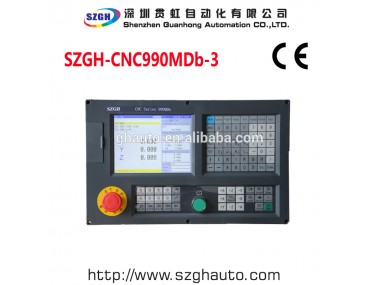

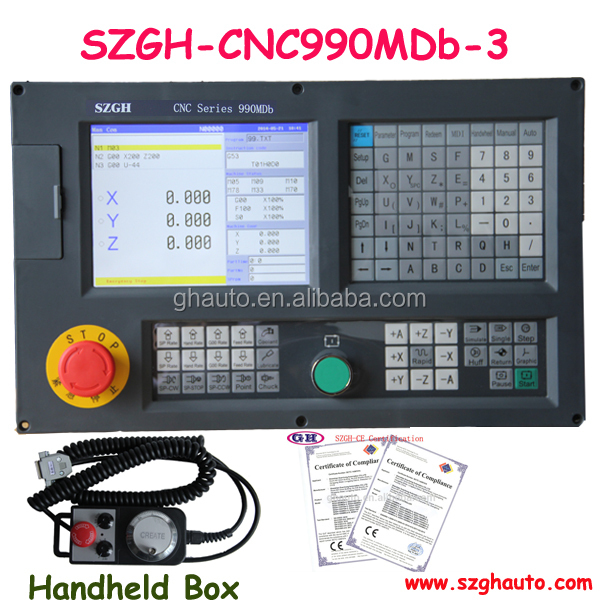

3 axia cnc milling controller with DSP+USB function
Product Description
SZGH-CNC990TDb-3 axis lathe CNC controller is 8 inch display(800600) and 2-channel analog, with cutter offset,I/O 24X24, PLC and macro function. Matching with Servo motor and driver , total product solution can be provide by Shenzhen Guanhong Automation CO.,LTD (short name:SZGH ).
Feature :
2) Support PLC and macro function, and automatic tool exchange function . 3) 32Mb user store room, 2-channel analog 4) The max speed is 30 m/min, feeding speed is 15m/min5) Touch screen main and sub panel.6) High anti-jamming switch power.7) USB movable U disc copy interface.8) RS232 interface.9) Spindle servo speed control/spindle frequency convenient speed control.10) Max screw processing thread pitch is 1000MM11) 32 bits high performance, low power consumption industrial grade ARM microprocessor. 12) I/O : 24X2413) cutter offset : C 14) English menu, program and interface, full screen edition Application: CNC lathe machinery; lathe machine center;TDC applied to engraving CNC machine.
