原産地: | 中国(本土) | 銘柄: | szgh | 適用: | フライス盤 | 条件: | 新しい | モデル番号: | CNC1000MDb-5 | 重量: | 10キログラム | 認証: | ce | 次元(L*W*H): | 412*205*120ミリメートル | 色: | グレー | cpu: | 32ビット高パフォーマンス | スピード: | を最高速度は60メートル/分 | ユーザー店ルーム: | 32メガバイトユーザー店ルーム | 表示機能: | 640*480 8インチリアルカラー液晶表示機能 | パネル: | タッチ画面メインとサブパネル | 電源: | 高い抗ジャミングスイッチ電源 | コピーインタフェース: | usb mobable uディスクコピーインタフェース | インタフェース: | rs232 | 軸: | 5軸 |
包装
包装: | でcartion、として標準パッケージのszgh |

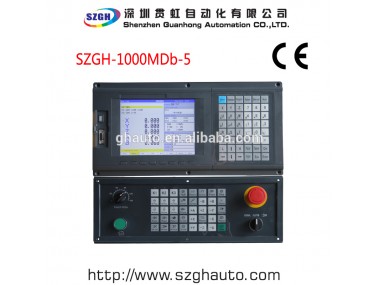

New 5 axis CNC milling controller/cnc control system
Product Description
CNC1000MDb is widespread CNC system (matched with machining center and general milling machine) developed by Shenzhen Guanhong Automation CO.,LTD (short name:SZGH ), employed with 32-bit high performance CPU and super-large-scale programmable device FPGA, real-time control and hardware interpolation technology to ensure the system gets the high efficiency with the μm-level precision, and its PLC can be edit on-line, which makes the logic control function become more flexible and strong.
Features:
1)32 bits high performance, low power consumption industrial grade ARM microprocessor. The max speed is 60m/min.
2)64MB memory.
3)32Mb user store room.
4)640480 8 inch real color LCD displayer.
5)Touch screen main and sub panel.
6)High anti-jamming switch power.
7)USB movable U disc copy interface.
8)RS232 interface.
9)Spindle servo speed control/spindle frequency convenient speed control.
10)Manual pulse generator.
System technical parameter:
• controllable axes:X,Y,Z,A,B five axes.
• linkage axes:Arc 2-3 axes, liner 2-5 axes.
• pulse equivalent:X,Y,Z,A,B axes:0.001mm.
• max speed:X,Y,Z,A,B:60000mm/min.
• cutting speed:1-10000mm/min.
• min input unit:0.001mm.
• program size range:± 99999.999.
• 99 tools management.
• program code:ISO-840 international standard.
• program coordinate system definition:ISO-841.
• chassis protection complies with regulation of IP43.
System function:
1) Auto-diagnosis function:
All around diagnosis of CPU, storage, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.
2) Compensation function:
automatic backlash compensation.
tool radius automatic compensation.
tool radius automatic offset and sharp angle transition.
leading screw pitch error automatic compensation.
3) Abundant instruction system:
scaling up/down instruction.
mirror machining instruction.
multiple tool offset instruction.
program cycle, jump, call and different program ending.
multiple positioning instruction:starting point,setting fixed point, etc.
liner, circular, spiral line interpolation instruction.
program management instructions: program cycle, call, transfer and different program ending method, etc.
6 work piece coordinates system .
4) English menu, full screen edition:
Easy operation, convenient viewing.
5) Abundant debugging functions:
it can point out clearly what errors of operation are and guide to correct them.
6) Program changing between CNC system and IBM/PC series compatible computer
it can conduct CAD/CAM/CAPP auxiliary programming by using Pc series compatible computer's abundant software resources,then transfer the CNC program into the system to machining through(USB movable U disc copy port,RS232 port).Likewise it also can transfer the program from system to PC through communication port.
System operation condition
1) Power supplying
AC 220V(+10%/-15%), Frequency 50Hz±2%. power:≤ 200W.
Note:it must use isolation transform to supply power,first input:380V
2) Climate condition
operation condition:temperature 0~45°C,relative moisture 40-80%.
storage & transportation condition:temperature -40~55°C,relative moisture <93%(40°C).
atmosphere pressure:86-106kpa.
3) operation environment :
No excessive flour dust, no acid, no alkali gas and explosive gas, no strong electromagnetic interference.
