原産地:	中国(本土)	銘柄:	szgh	適用:	フライス盤
条件:	新しい	モデル番号:	CNC1000MDb-3	重量:	10キログラム
認証:	ce	次元(L*W*H):	412*205*120ミリメートル	製品名:	SZGH-CNC1000MDb-3 cnc制御システム用フライスと掘削
表示画面:	8インチリアルカラーlcd	制御ユニット:	arm + dsp + fpga	コピーインタフェース:	usb可動uディスク
cpu:	32ビット	スペアパーツ1:	addtionalのパネル(送料充電)	メモリ:	64メガバイト
機体色:	グレー/ブラック	通信モード:	rs232	スペアパーツ2:	mpg/ハンドヘルド

包装

包装:	でカートン用低価格3軸cnc制御システム用フライスと掘削、として標準パッケージのszgh

SZGH-CNC1000MDb-3 CNC Control System for Milling and Drilling        SZGH-CNC1000MDb-3 is three axis economic type milling controller system, specialized in all kinds of type milling machinery, support PLC program, macro and ATC function. free to maching addtional panel and MPG Product Description1) three axis economic type milling controller2) 64MB memory.3) 32Mb user store room.4) 640480 8 inch real colour LCD displayer.5) Touch screen main and sub panel.6) High anti-jamming switch power.7) USB movable U disc copy interface.8) RS232 interface.9) Spindle servo speed control/spindle frequency convertion speed control.10) Manual pulse generator.11) PLC and macro function13) auto tool change function12) English menu, program and interface, full screen edition13) 32 bits high performance, low power consumption industrial grade ARM microprocessor.Application: CNC milling machinery;milling and drilling center; wood working machine; numerically control grinder.



Technical specification:

1) System technical parametercontrollable axesX,Y,Z five axes.linkage axesArc 2-3 axes, liner 2-3 axes.pulse equivalentX,Y,Zaxes:0.001mm.max speed X,Y,Z60000mm/min.cutting speed 1-10000mm/min.min input unit 0.001mm.program size range ± 99999.999.99 tools management.program code ISO-840 international standard.program coordinate system definition ISO-841.chassis protection complies with regulation of IP43.2)System functionAuto-diagnosis functionAll around diagnosis of CPU, storer, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.Compensation functionautomatic backlash compensation.tool radius automatic compensation.tool radius automatic offset and sharp angle transition.leading screw pitch error automatic compensation.Abundant instruction systemscaling up/down instructionmirror machining instruction.mutiple tool offset instruction.program cycle, jump, call and different program ending.multiple positioning instruction starting point setting fixed point,etc.linera, circular spiral line interpolation instruction.program management instructions: program cycle, call, transfer and different program ending method, etc.6 work pieces coordinates system .English menu, full screen editionEasy operation, convenient viewing.Abundant debugging functionsit can point out clearly what errors of operation are and guide to correct them.Program changing between CNC system and IBM/PC series compatible computer  it can conduct CAD/CAM/CAPP auxiliary programming by using Pc series compatible computer's abundant software resources then transfer the CNC program into the system to machining through USB movable U disc copy port S232 port.Likewise it also can transfer the program from system to PC through communication port.

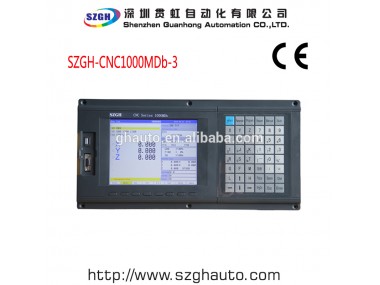

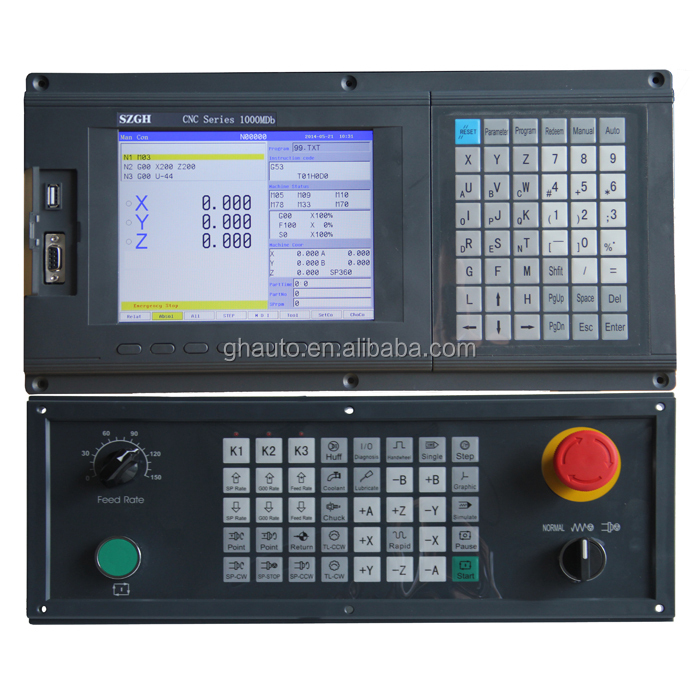

Product Picture
