原産地:	中国(本土)	銘柄:	szgh	適用:	旋盤とターンセンター
条件:	新しい	モデル番号:	CNC990TDb-2	重量:	10キログラム
認証:	ce	次元(L*W*H):	512*206*120	機体:	グレー
通信ポート:	rs232	i/o:	24*24	表示機能:	8インチリアルカラーlcd
ユーザー店ルーム:	32メガバイト	機能:	atc	送り速度:	15メートル/分
電源:	高い抗ジャミングswithc電源	カッターオフセット:	c	品質保証:	2年

包装

包装:	でカートン、として標準パッケージのszgh サイズ: 42*32*27、 重量: 8.5キログラム

  Professional CNC990TDb-2 With CE certification 2 axis CNC Lathe Controller Product Description

        CNC990TDb-2 is economic type and professional two axis CNC lathe controller . Its display is 8” color wide-screen LCD, have good performance with faster response speed, and add automatic tool compensation, CNC990TDb-2 is the optimum option for the widespread CNC lathe machine.





Feature:



1) 800600 8 inch real color LCD displayer.



2) Support PLC and macro function, and automatic tool exchange function .



3) 32Mb user store room, 2-channel analog



4) The max speed is 30 m/min, feeding speed is 15m/min



5) Touch screen main and sub panel.



6) High anti-jamming switch power.



7) USB movable U disc copy interface.



8) RS232 interface.



9) Spindle servo speed control/spindle frequency convenient speed control.



10) Max screw processing thread pitch is 1000MM



11) 32 bits high performance, low power consumption industrial grade ARM microprocessor.



12) I/O : 24X24



13) cutter offset : C



14) English menu, program and interface, full screen edition



Application:CNC lathe machinery , grinder machinery , standard CNC machinery



Technical specification:

•X,Y two axis lathe•liner, circular, spiral line interpolation instruction.•min input unit:0.001mm.•program size range:± 99999.999.•Feeding speed:0.001-15m/min•Max speed: is 30 m/min• length Compensation•tool radius automatic compensation •RS232 and U flash connection port•Spindle servo speed control/spindle frequency convenient speed control.•max screw processing thread pitch is 1000MM•I/O 24X24 input and output System operation condition:1) Power supplyingAC 220V(+10/-15%), Frequency 50Hz±2%. power:≤ 200W.Note:it must use isolation transform to supply power first input:380V2) Climate conditionoperation condition:temperature 0-45 degree,relative moisture 40-80%.storage & transportation condition:temperature -40-55degree,relative moisture <93%(40degree).atmosphere pressure:86-106kpa.3) operation environment :No excessive flour dust, no acid, no alkali gas and explosive gas, no strong electromagnetic interference.

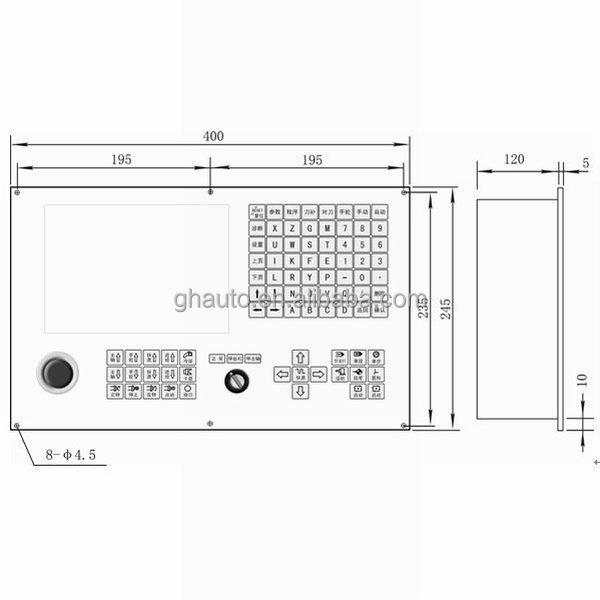

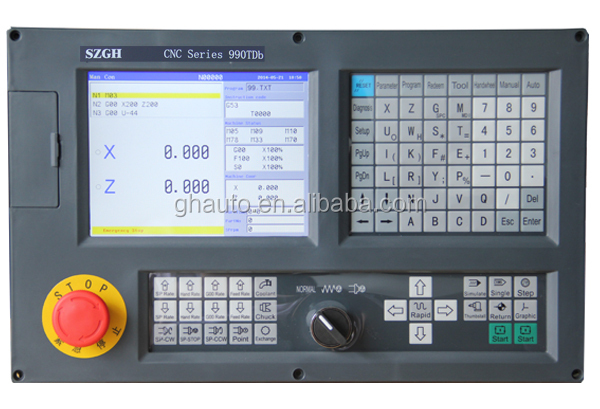

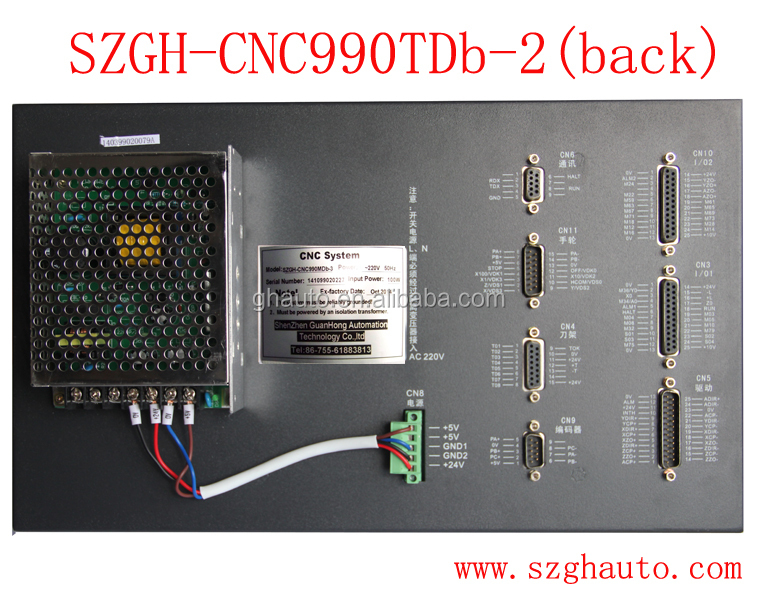

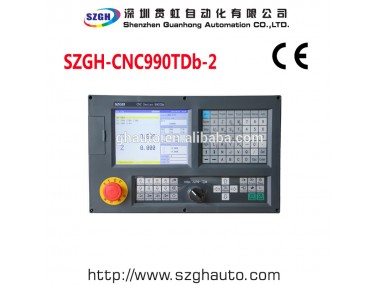

Product Picture:
