| 原産地: | 中国(本土) | 銘柄: | acecare技術 | モデル番号: | my1022 | 重量: | 900kg | 力(W): | 1.5キロワット | タイプ: | 表面の粉砕機 | CNCまたはない: | 正常 | 条件: | 新しい | 次元(L*W*H): | 1800*1400*1800mm |
包装
| 包装: | 木箱、 またはに応じては、 お客様ののrequirment |

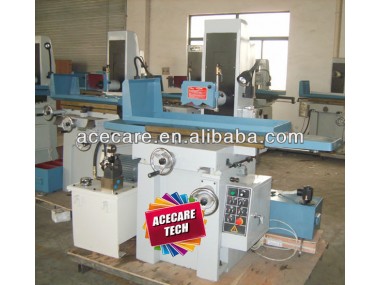

MY1022 Hydraulic Surface Grinder , Surface Grinding Machine
Technical Parameters | Unit | MY1022 | MYS1022 | |
Max.workpiece to be Ground ( L×W×H) | mm | 600×250×490 | 600×250×490 | |
Max. Grinding Length | mm | 600 | 600 | |
Max. Grinding Width | mm | 250 | 250 | |
Distance From Table Surface To Spindle Center | mm | 490 | 490 | |
Slide way |
| V-type rail with Steel-ball | V-type rail with Steel-ball | |
V-type rail with Steel-ball | Kg | 200 | 200 | |
Table Size (L×W) | mm | 550×260 | 550×260 | |
Number of T -Slot | mm×n | 12×1 | 12×1 | |
Speed OF Working Table | m/min | 3-23 | 3-23 | |
Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | |
Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | |
Wheel Size (dia.×width×bore ) | mm | 200×16×31.75 | 200×16×31.75 | |
Spindle Speeds | 50Hz | rpm | 2850 | 2850 |
| 0-6000 | 30-6000 | ||
Spindle Motor | Kw | 1.1 | 1.1 | |
Hydraulic station motor | Kw | 1.5 | 1.5 | |
Working Pressure | Mpa | 3 | 3 | |
Max.Capacity | L/min | 18 | 18 | |
Minimum Of Numerical | L | 80 | 80 | |
Coolant Pump | Kw | 0.4 | 0.4 | |
Minimum of Numerical Display | mm |
| 0.001-0.005 | |
Machine Size (L×W×H) | mm | 1800×1400×1800 | 1800×1400×1800 | |
Packing Size (L×W×H) | mm | 1300×1630×1960 | 1300×1630×1960 | |
Gross,Net | T | 0.90, 0.95 | O.89, 0.94 | |
