電圧: | 220v/380v/400v | 原産地: | 中国(本土) | 銘柄: | Uni- ハイテク | モデル番号: | z5035 | 鋭い速度: | 75~2500r/min | 重量: | 670kg | 力(W): | 1.5/2.2キロワット | CNCまたはない: | 正常 | 条件: | 新しい | 認証: | ce、 iso9001 | 次元(L*W*H): | 108*62*230cm | 提供される売り上げ後のサービス: | 利用できる海外サービスセンター | 最大。 掘削能力: | 35mm | 最大。 能力をタップ: | m24 | カラムの直径: | 140ミリメートル | スピンドルの旅: | 160ミリメートル | スピンドル速度範囲: | 75~2500r/min | スピンドルはシリーズ: | 12 | スピンドルは: | 0.10.20.3mm/r | テーブルの旅: | 550ミリメートル | G。 w/n。 w: | 670/600kg | 主電動機: | 1.5/2.2キロワット |
包装
包装: | は木製のケースを燻蒸 |

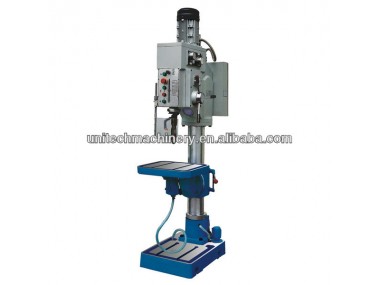

pillar type milling drilling machine Z5035
Product Description Feature and application:1.New-designed,pleasing appearance,compact construction,wide speed chande range,easy to operate.
2.Easy operation with its unique workable, and both motor-drive(Z5035) and manual-operated lifting sevice.
3.The working table can be rotated 180° and can be tited ±45° also,it is reliable and easy job can be done.
4.Equipped with coolant system and tapping mechanism.
5.Equipped with shortcut and overload protection,its electricasystem with powerful spindlemotor,it designed according to IEC standard.
6.Characteristic protection device is safe and reliable.
7.Ideal choice for single pice,small batch and mass production for drilling,counter boring,reaming,tapping,spot facing,etc.
Item | Unit | Z5035 | Z5030 |
Max. Drilling capacity | mm | 35 | 30 |
Max. Tapping capacity | mm | M24 | M20 |
Diameter of column | mm | 140 | 120 |
Spindle travel | mm | 160 | 135 |
Distance spindle axis to column generating line | mm | 330 | 320 |
Max. Distance spindle nose to table | mm | 590 | 550 |
Max. Distance spindle nose to base | mm | 1180 | 1100 |
Spindle taper | MT4 | MT3 | |
Spindle speeds range | r/min | 75~2500 | 65~2600 |
Spindle feeds series | 12 | 12 | |
Spindle feeds | mm/r | 0.1 0.2 0.3 | 0.1 0.2 0.3 |
Dimension of workable surface | mm | 500*440 | 500*440 |
Table travel | mm | 550 | 490 |
Dimension of base table | mm | 400*390 | 400*390 |
Overall height | mm | 2300 | 2050 |
Main motor | kw | 1.5/2.2 | 1/1.5 |
Coolant motor | w | 40 | 40 |
G.W/N.W | kg | 670/600 | 500/440 |
Packing dimension | cm | 108*62*230 | 108*62*215 |
Standard Accessories: | Optional Accessories: |
Drill chuck | Multi-spindles |
Arbor | Angle vice |
Taper sleeve | Safety guard |
Drift | |
Eyelet bolts | |
Wrench |
