| 原産地: | 中国(本土) | 銘柄: | マップ | モデル番号: | FCY70 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | ダンパー定格負荷: | 7000キログラム | ダンパーバケット容量: | 3.0cbm | ダンパーエンジン: | xiachaiディーゼルエンジン | ダンパータイヤ: | 16/70-20 | 外形寸法: | 5250 × 2250 × 2700ミリメートル | 色: | 黄色、グリーン. ect | アプリケーション: | 転送材料用短い距離 | 認証: | ce |

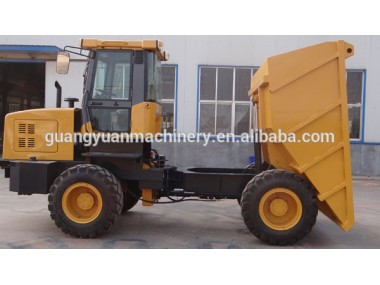

7ton site dumper 4wd heavy construction machinery for sale
Weifang Map Power Company ,supply dumper FCY20, FCY30 and FCY50, FCY70, FCY100 with deutz engine, turning bucket and selfloading optional. As a real factory, we supply adjustable design and OEM.
Site dumper are widly used for transfer materials for short distance.
Applications of Map Site Dumper: constructional engineerings for transfer sandy, stons or other materials; in factory to transfer garbage or others.ect
Product Description
Here is the detailed information of 7.0T site dumper, pls kindly check:
. | Payload |
| 7000kg |
2. | Operating weight |
| 4550 kg |
3. | Hopper capacity |
| 3.0 m3 |
4. | Maximum speed |
| 25 km/h |
5. | Handbrake available on grade |
| 18% |
6. | Max grade ability |
| 251% |
7. | Distance of road after brake |
| ≤2.5m with load and speed 10km/h |
8. | Minimum turn radius |
| 4 m |
9. | Ground clearance |
| 248 mm |
10. | Noise level |
| ≤102 db(A) |
11. | Loading discharge angle |
| 48.40 |
12. | Time of discharge |
| 6s |
13. | Hydraulic pressure |
| 16 Mpa |
14. | Wheel base |
| 2200 mm |
15. | Wheel tread |
| 1580 mm |
16. | Engine power | 60KW | |
17. | Dimensions (LxWxH) | 52502250x2700 mm | |
