| 原産地: | 中国(本土) | 銘柄: | hl | モデル番号: | Hl70-l | 重量: | 395kg | 保証: | 1年 | 条件: | 新しい | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | アプリケーション: | 配達、 ボンディングおよび左官工事 | モデル番号: | 石膏hl70-l銃 | 寸法( l*w*h): | 20408201270ミリメートルxx | 重量: | 395kg | 認証: | iso9001 | 保証: | 6ヶ月 | 後- セールスサービスが提供される:: | 海外三- パーティー利用可能なサポート | 色: | オプション |
包装
| 包装: | 木製カートン、 パッキングすることも可能あなたの条件に従って |
Best price spraying pump /wall plastering machine/plastering machine for wall
Product Description
1. There are two options of air compressor and pumping motar for HL70-L
plastering machines.
a. handy air compressor replac the common air compressor made in china. Since it can offer lower
pressure but larger output to reduce fly ash fell and the mortar more adhesion than the common one. Can achieve 1000m2-2000m2 per 7hours.
b. handy air compressor is separated and portable, it can avoid the common faulty of old design that
mortar plastering machine always need to maintain or repair due to air compressor quality.
2. For spraying or pumping traditional mortar and pre-mixed plasters,
fiber-reinforced and refractory mortars, fireproof materials, self-leveling screeds
and for reinforcing injections at controlled pressure.

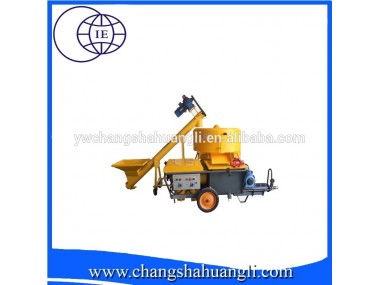

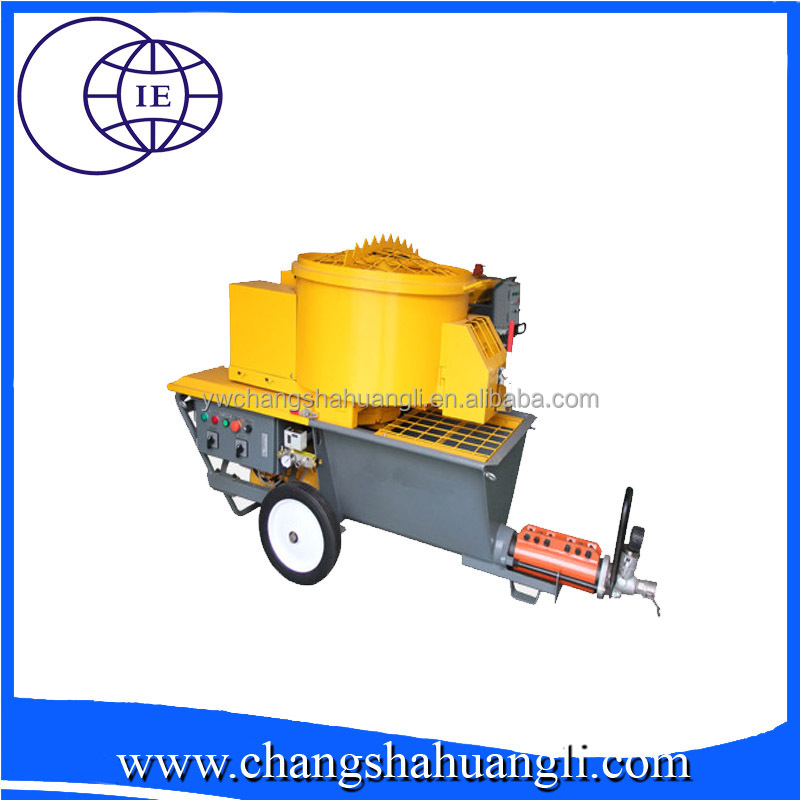

Technical parameters of HL70-L Mortar plastering machine
Model
| — | HL70-L |
Supply power
| — | 400V 50Hz |
Motor power
| kw | 3.7/4.4 |
Compressor power
| kw | 2.2 |
Maximum grain size
| mm | 8 |
Output
| L/min | 50 |
Delivery pressure
| bar | 30 |
Horizontal delivery distance
| m | 60 |
Vertical delivery distance
| m | 30 |
Mixer power
| kw | 1.1 |
Mixer volume
| l | 120 |
Hopper volume
| l | 120 |
Net weight
| kg | 395 |
Dimension (L×W×H)
| mm | 2040×820×1270 |
1.HL70-L always is exported to KUWAIT each month, it always is used for fireproofing mortar plastering in tunnel and steel board house.
