| 電圧: | 380v | 原産地: | 中国(本土) | 銘柄: | hh | 条件: | 新しい | モデル番号: | Hh- br0.25- nn- 2 | 重量: | 800kg | 力(W): | 20キロワット | タイプ: | 超高温 | 保証: | 12ヶ月 | 認証: | ce | 次元(L*W*H): | 1500*900*1900mm | 使用法: | 液体製品とペースト | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | ステンレス鋼: | 高temperatute | 短時間: | 液体製品 | ミルク: | アイスクリーム |
包装
| 包装: | 標準的な木製ケース |

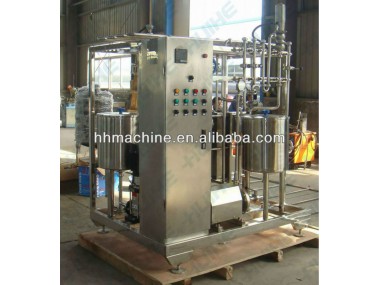

The Plate Type UHT Sterilizer is suitable for the heating, sterilizing, preservation and cooling for the heat sensitive product like fresh milk, juice, beverage, alcohol etc.
It is mainly composed of the material balance and conveys system, the plate heat exchanger system, material pipe system, hot water pipe system, steam pipe system, material automatic return-flow system, automatic temperature control system, electric component system etc.
It is special equipment that is designed for the sterilizing of the dairy product, juice, beverage and liquid similar liquid product. It is an ideal equipment to lengthen the product shelf life by sterilizing and cooling. It can be assembled and designed differently according to different requirements for the heating, sterilizing, preservation and cooling of different material. It has the functions of many kinds of safety precautions; high temperature warning and low temperature back flow etc. At the same time, the high precision automatic control system can be matched correspondingly for customer.
Model | Operational Capacity (t/h) | Steam Consumption (kg/h) | Steam Pressure (bar) | Ice Water Flow Rate (T/H) | Electric Power (kw) | Outside Size (L×W×H) | Caliber(Φ) | ||
Material | Steam | Medium | |||||||
HH-BR0.1-NN-1 | 1 | 40 | 5.0 | 3.5 | 1.8×1.4×1.8 | 840 | 25 | DN25 | 25 |
HH-BR0.1-NN-1.5 | 1.5 | 60 | 5.0 | 3.5 | 1.8×1.4×1.8 | 880 | 25 | DN25 | 25 |
HH-BR0.25-NN-2 | 2 | 80 | 5.0 | 4.1 | 1.8×1.6×2.0 | 910 | 38 | DN25 | 38 |
HH-BR0.25-NN-3 | 3 | 120 | 5.0 | 4.1 | 1.8×1.6×2.0 | 980 | 38 | DN25 | 38 |
HH-BR0.25-NN-4 | 4 | 160 | 5.0 | 4.1 | 2.0×1.6×2.0 | 1050 | 38 | DN25 | 38 |
HH-BR0.25-NN-5 | 5 | 200 | 5.0 | 4.1 | 2.3×1.6×2.0 | 1130 | 38 | DN32 | 38 |
Remark
1,The parameter in the chart is the reference only. If customer has special requirements, please point out.
2,The model choose standard of the tubular type UHT is the property of the material, the sterilizing technics, special requirements etc.
3,Auxiliary equipment: Air storage tank, air compressor, water storage tank and steam boiler (Customer supply)
