| 原産地: | 中国(本土) | 電圧: | 220v/110v | 銘柄: | yason | 製品容量: | 16200pcs/h | モデル番号: | zp9 | 重量: | 220キロ | 力(W): | 1.5キロワット | タイプ: | 回転式タブレットの出版物 | 認証: | なしを持っている | 提供される売り上げ後のサービス: | 提供される海外サービス無し | 条件: | 新しい | 次元(L*W*H): | 480*630*1100mm | 最高。 圧力(KN): | 40kn | 最高。 タブレットの厚さ(mm): | 6mm | 最高。 タブレットの直径(mm): | 6〜20ミリメートル | タイプ: | ロータリー打錠機 | モデル: | Zp-5,zp-7,zp-9 | 電圧: | 220vまたは110vまたはカスタマイズされた | が死ぬ: | 5セット、 7セット、 9セット | 最大。 塗りの深さ: | 15mm | タレット速度: | 0-32r/min | moq: | 1セット | パッケージ: | 木製 | 配送方法: | /dhlフェデックス/ups/ems | 納期: | 3営業日以内に |
包装
| 包装: | 木製ケース |
Item Display
Item Information
for Pharmaceutical Small Factory

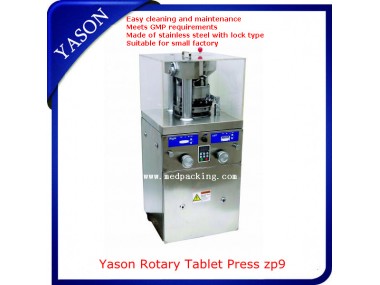

ZP Rotary Tablet Press
Introduction
This is a compact type of the automatic rotation and continuous tablet press, mainly used in the
technical research in pharmaceutical, chemical, food, electronic and other industries, and it is
important equipment for determining whether the grain materials can be pressed into tablets. It is applicable to pressing of grain materials available to be made into tablets (within the range of pressure of the machine) with the powder content (above 100 meshes) not more than 10%.
It is applicable to pressing of regular/irregular shape and scoring tablets.
It is not applicable to semisolid, wet grain, materials of low melting point and easily absorbing dampness and powder.
Technical Parameters
Model | ZP-5 | ZP-7 | ZP-9 |
No. of turret press dies (pair) | 5 | 7 | 9 |
Max operating pressure | 40KN | 40KN | 40KN |
Max. tablet pressing diameter | 12mm | 12mm | 12mm |
Max. tablet pressing thickness | 6mm | 6mm | 6mm |
Max. feeding depth | 15mm | 15mm | 15mm |
Max. tablet pressing output | 9000pcs/h | 12600pcs/h | 16200pcs/h |
Turret operating diameter | 200mm | 200mm | 200mm |
Turret rotation speed, turn/min | 0-30 | 0-30 | 0-30 |
Middle press die diameter | 26mm | 26mm | 26mm |
Middle press die height | 22mm | 22mm | 22mm |
Upper/lower press lever diameter | 22mm | 22mm | 22mm |
Upper/lower press lever length | 115mm | 115mm | 115mm |
Visual dimension, cm | 48*63.5*110 | 48*63.5*110 | 48*63.5*110 |
Machine weight | 220kg | 220kg | 220kg |
Motor power | 1500w | 1500w | 1500w |
Voltage | 220V | 220V | 220V |
Why choose us?
Our machines undergo an extensive and strict testing and quality control procedure, ensuring each and every item purchased meet global quality standards.
Before Purchase
Need any information of the item before customers' purchase. On-hand professional technical staffs are willing to solve any problems in 24 hours. And an instruction attached with machines' package before the shipment.
Payment Method
These payments of T/T, Western unio, Paypal4%, Visa Card 5% are accepted.
If there is any difficulty in doing the payment, please leave us a message or e-mail me.
Logistics
DHL, EMS, UPS, FedEx are our choices. If you have reliable logistic agent, please e-mail us
Tracking number
The tracking number will be informed within 2-3 work days after the goods are sent out.
Refund
If there is any damage or shortage when you receive your goods, please take a real photo as a witness, we will deal with it in 24 hours. Before refund are accepted, please leave a message or e-mail us.
