| 原産地: | 中国(本土) | 電圧: | 110ボルトまたは220ボルトまたは240ボルトまたは380ボルトまたは任意の電圧にカスタマイズ | 銘柄: | yason | 製品容量: | 4000-6000 p/h | モデル番号: | YS-TDP-5 | 重量: | 140キログラム | 力(W): | 750ワット | タイプ: | 単一の穿孔器 | 認証: | no have | 提供される売り上げ後のサービス: | 提供される海外サービス無し | 条件: | 新しい | 次元(L*W*H): | 700 × 380 × 695ミリメートル | 最高。 圧力(KN): | 50kn | 最高。 タブレットの厚さ(mm): | 6ミリメートル | 最高。 タブレットの直径(mm): | 18ミリメートル | 素材:: | アルミ合金 | モータ速度:: | 1400r/min | 支払い項目:: | t/tまたは呉またはpaypal | 配送方法:: | フェデックス、dhl、ems、ups | 包装の詳細:: | 標準輸出パッケージ |
包装
| 包装: | 定期的なパッケージ |

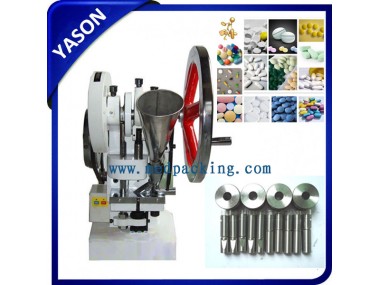

Tdp-5 Single punch tablets press machine
Description
---------------------------------------------------------------------------------------------------------------------------------------------------
A lot of the branded vitamin tablets on the high street have unnecessary additives and supplements that you just don’t need.
This press allows you to mix the vitamins and supplements that you require for your exact diet and convert them into convenient pills.
Maybe you are considering setting up a small business selling vitamin, weight loss or herbal tablets.
It will run for hours continuously producing identical tablets time after time, giving your business a professional look.
TDP type tablet press,able to make powder and granular material compressed into acircular shaped tablet.
Can be widely used in pharmaceutical,chemical plants,hospitals and scientific research units.
The machine performance is excellent,adaptable,easy to use,easy maintenance,small size,light weight.Without electricity may could also be hand-pressed.
A large pressure of tablet press machines,filling a large depth,thus the size range of tablet is large,able to adapt to the pharmaceutical industry to produce a variety of tablet medicine requirements and other industry requirements of produce similar products,deeply welcomed by customers of various industries.
Features
___________________________________________________________________________________________
- 1. Glossy finished stainless steel belt cover, as clean as a whistle, no pollution, meets the GMP standard.
- 2. only a pair of punch and die can be erected on this machine, both filling depth of materials and thickness of tablet are adjustable.
- 3. Larger diameter tablets up to 25mm (TDP-6).
- . Press both round and irregular tablets.
- 5. Power supply: AC, 220V/50HZ or 110V/60HZ 1 phase or customization.
- 6. Free with a pair of punch and die.
- 7. High precision of filling, lower consumption of materials, the minimum consumption of lab materials is just 200 g.
- 8. Small volume, light weight, works smoothly and low noise.
Technical Parameters
--------------------------------------------------------------------------------------------------------------------------------------------------
Model | TDP-1.5 | TDP-5 | TDP-6 |
Max. pressure (KN) | 15 | 50 | 60 |
Max. diameter of tablet (mm) | 12 | 18 | 25 |
Max. depth of fill (mm) | 12 | 16 | 16 |
Max. thickness of tablet (mm) | 6 | 6 | 10 |
Production capacity (tablets/hour) | 4000-6000pieces/h | 4000-6000pieces/h | 4000 |
Power (KW) | 0.25 | 0.75 | 1.1 |
Power supply | AC,220V/50HZ or 110V/60HZ 1 phase | ||
Net weight (kg) | 70 | 140 | 165 |
Overall size (mm) | 570380x630 | 700*380*695mm | 580600x700 |
--------------------------------------------------------------------------------------------------------------------------------------------------
After-sales
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Our machines undergo an extensive and strict testing and quality control procedure, ensuring each and every item purchased meet global quality standards.
♦Payment Methods♦
These payments of T/T, L/C, Western unio, MoneyGram,Paypal are accepted. If you have any problem with the payment, please leave a message to us.
♦Logistics♦
DHL, EMS and UPS, Fedex are our choices. If you prefer other reliable shipping company. Please leave a message to us.
♦Tracking Number♦
Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it, please leave a message to us.
♦Feedback♦
Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company. If you have any problem with our products, please leave a message to us.
♦Refund♦
Any damage or shortage of our goods when you receive your items. Please take some photos for a witness. We will deal with it in 24 hours. Frequently, we will send a new part of items for alternative and heavy-damage, Before refund is accepted, please leave a message to us.
