| 原産地: | 中国(本土) | 電圧: | 220ボルト | 銘柄: | yason | 製品容量: | 3000 p/h | モデル番号: | tdp6 | 重量: | 160キログラム | 力(W): | 1100ワット | タイプ: | 単一の穿孔器 | 認証: | ce | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 条件: | 新しい | 次元(L*W*H): | 700*380*695ミリメートル | 最高。 圧力(KN): | 60kn | 最高。 タブレットの厚さ(mm): | 7.5ミリメートル | 最高。 タブレットの直径(mm): | 25ミリメートル |
包装
| 包装: | 紙カートン |

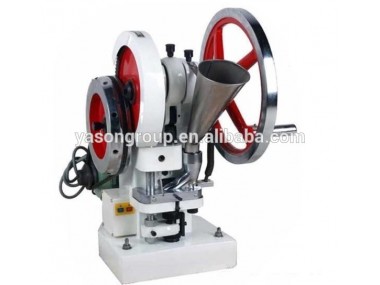

TDP 6 Single Punch Tablet Presser with 1 set Free Round Die
Specification
Place of Origin: Guangdong China (Mainland)
Type: single punch
Brand Name: YASON
Model Number: TDP6
Type: tablet pressing machine
Application: tablet
Voltage: 110V or 220V or 240v or 380v or any voltage customized
Max.Main Pressure (kn): 60
Max.Pressure Diameter(mm): 25
Max.Filling Depth(mm): 18
Max.Tablet Thickness(mm): 7.5
Max. Production Capacity (p/h): 3000
Motor (KW): 1.1
Outside Size(mm): 700380X695
Weight (kg): 165
Introduction
The machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc.
It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder metallurgical, Electronic elements and various tablets of pesticide and fertilizer. etc. in such small-batch production, laboratory and hospital fields.
Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with printing as well.
Main Technical Parameters
Material: metal and Aluminum.
Model: | TDP-1.5 | TDP-5 | TDP-6 |
Max.Main Pressure (kn) | 15 | 50 | 60 |
Max.Pressure Diameter(mm) | 12 | 20 | 25 |
Max.Filling Depth(mm) | 12 | 16 | 18 |
Max.Tablet Thickness(mm) | 6 | 6 | 7.5 |
Max. Production capacity (p/h) | 4500 | 4000 | 3000 |
Motor (KW) | 0.55 | 0.75 | 1.1 |
Outside size(mm) | 570*380*630 | 700*380*695 | 700*380*695 |
Weight (kg) | 90 | 125 | 165 |
