| 電圧: | 220ボルト380ボルト | 原産地: | 中国(本土) | 銘柄: | uniwonder | 条件: | 新しい | モデル番号: | UW-MSK500 | 重量: | 600キログラム | 自動等級: | 自動 | 力(W): | 1.5kw | 保証: | 1年 | 認証: | ce iso | 次元(L*W*H): | 3300*1000*1700ミリメートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 生産速度: | 0-200/m、 を厚さの材料、 を最高制御120-150 m。 | タイプ: | 手術マスク機 |
包装
| 包装: | 輸出標準的なパッキング- 木製ケース。 |

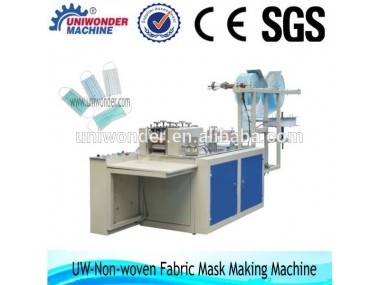

surgical operation mask machine
Introduction:
Our company developed non-woven mask slicer, the product applies to hospitals, research institutes and industrial dust . The machine is stainless steel structure, independent electrical control box, using ultrasonic fusion technology.
only one operation, from raw materials into, aluminum insert / cut, package and bag side edge fusion, forming fusion, forming cut to the finished product output, counting, collecting complete automation and control, the maximum production of 200 per minute.
Features:
1,Stability, performance, low failure rate.
2,Stainless steel construction, separate collection of electrical control box and finished table, machine real close, off a small plot.
3,All parts chrome plated surface, covering parts of stainless steel, beautiful and clean.
4,Single-phase power conversion, energy efficient.
5,Transmission system using belt, chain, gear combination.
6,Adjustable ultrasonic welding.
7,Changing a machine, the replacement of mold can produce various specifications of masks.
8,Electronic counting.
9,Discharge static treatment.
10,Automatic shutdown protection cloth off.
Main Technical Parameter
Material | melt-blown non-woven filter cloth carbon cloth reinforcement bridge of the nose |
Non-woven Mask Specifications | one to produce multi-layer non-woven mask film, activated carbon respirator film, filter paper, gauze mask plate (filter paper inside and outside gauze); length 125 - 205mm, width 80 - 100mm (such as infant mask 125 × 80mm; ordinary mask 175 × 95mm and other models) |
Production Speed | 0-200p/m, the thickness of the material, the best control 120-150p/m. |
Rated Power | 3Kw |
Rated Voltage | 220V±5% |
Machine Weight | 380KG |
Overall Dimensions | 3200(L)×750(W)×1380(H)mm |
