| 電圧: | 220ボルト380ボルト | 原産地: | 中国(本土) | 銘柄: | uniwonder | 条件: | 新しい | モデル番号: | UW-MSK500 | 重量: | 600キログラム | 自動等級: | 自動 | 力(W): | 1.5kw | 保証: | 1年 | 認証: | ce iso | 次元(L*W*H): | 3300*1000*1700ミリメートル | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 生産速度: | 0-200/m、を厚さの材料、を最高制御120-150 m。 | タイプ: | 手術マスク機 |
包装
| 包装: | 輸出標準梱包-木製ケース。 |

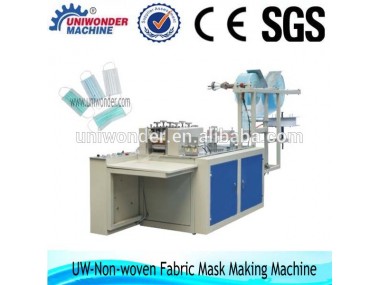

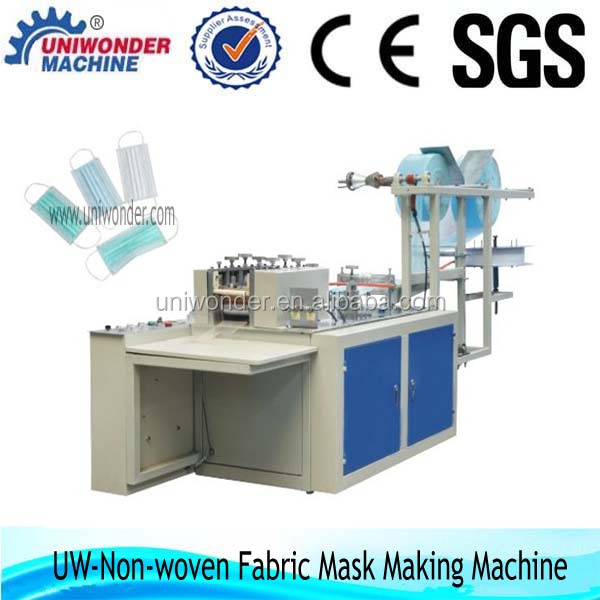

surgical operation mask machine
Introduction:
Our company developed non-woven mask slicer, the product applies to hospitals, research institutes and industrial dust . The machine is stainless steel structure, independent electrical control box, using ultrasonic fusion technology.
only one operation, from raw materials into, aluminum insert / cut, package and bag side edge fusion, forming fusion, forming cut to the finished product output, counting, collecting complete automation and control, the maximum production of 200 per minute.
Features:
1,Stability, performance, low failure rate.
2,Stainless steel construction, separate collection of electrical control box and finished table, machine real close, off a small plot.
3,All parts chrome plated surface, covering parts of stainless steel, beautiful and clean.
4,Single-phase power conversion, energy efficient.
5,Transmission system using belt, chain, gear combination.
6,Adjustable ultrasonic welding.
7,Changing a machine, the replacement of mold can produce various specifications of masks.
8,Electronic counting.
9,Discharge static treatment.
10,Automatic shutdown protection cloth off.
Main Technical Parameter
Material | melt-blown non-woven filter cloth carbon cloth reinforcement bridge of the nose |
Non-woven Mask Specifications | one to produce multi-layer non-woven mask film, activated carbon respirator film, filter paper, gauze mask plate (filter paper inside and outside gauze); length 125 - 205mm, width 80 - 100mm (such as infant mask 125 × 80mm; ordinary mask 175 × 95mm and other models) |
Production Speed | 0-200p/m, the thickness of the material, the best control 120-150p/m. |
Rated Power | 3Kw |
Rated Voltage | 220V±5% |
Machine Weight | 380KG |
Overall Dimensions | 3200(L)×750(W)×1380(H)mm |
UNIWonDER CO., LTD is favored by domestic and oversea customers all along in the world, such as Southeast Asia, the Middle East, Africa, Europe and Asia, North and South America and Australia more than 30 countries and regions. Because of recognition of quantity, devotion of service and unremitting development of new technology, and the products are processed with high science and technical, reasonable design, advanced technology, prominent quality, credible capacity and perfect service, Which got higher reputation from our customers.
