| 電圧: | 380ボルト/220ボルト | 原産地: | 中国(本土) | 銘柄: | gsb | 条件: | 新しい | モデル番号: | SA-22 | 重量: | 760キログラム | 自動等級: | 半自動 | 力(W): | 750ワット | タイプ: | 打抜き機 | 保証: | 1年 | 認証: | ce、gsb | 次元(L*W*H): | 95 × 95 × 155ミリメートル | 提供される売り上げ後のサービス: | 提供される海外サービス無し |
包装
| 包装: | 標準木製ケース |
leather strap cutting machine
More cutting machine please click follows:
1. Hydraulic Swing Arm Cutting Press
3. Hydraulic Plane Cutting Press
4. Hydraulic Traveling Head Cutting Press
Other shoe machines:
http://www.gsbmachine.com
http://sumon.en.alibaba.com
Use and Characteristics:
1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of cutting die is changed.
3. High speed and low energy consumption.
4. To meet the need of frequent replacement of cutting die of different sizes, another type of machine that can timely output three kinds of cutting force is available for selection.
5. Ductile cast iron body made the machine be used for a very long time and small noise.
Main Technical Parameters:
Model | SA-22 |
Max cutting force | 22T |
Working area | 900430mm |
Swing arm width | 370mm |
Cutting stroke | 90mm |
Motor power | 1.1KW |
Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz |
Single phase 240V/220V, 50/60 Hz | |
Machines dimensions | 900820X1400mm |
Packing size | 10501000X1500mm |
N.W(with oil) | 740kg |
G.W | 760kg |
Contacts:
Name: Judy Bian
Skype: chinasumon
Whatsapp: +86-13515143185
TM: cn1000896720
Add: No. 7-7, Airport Road, Nanyang Economic Development Zone
Remark: The machine will include the cutting board,hydraulic oil,tools and spare parts.

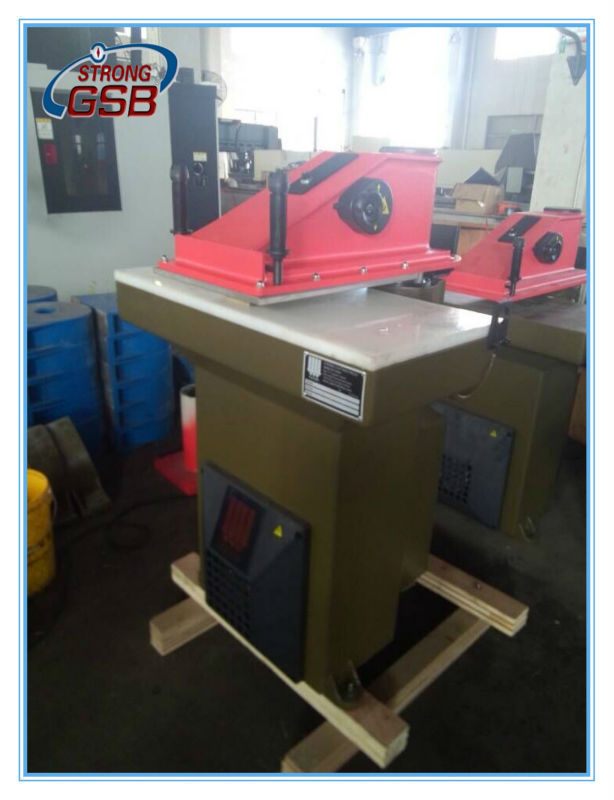

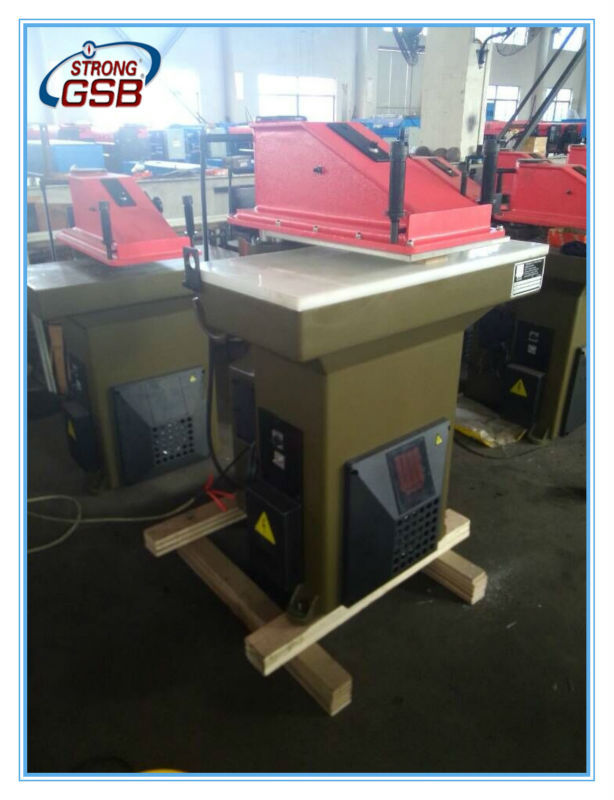

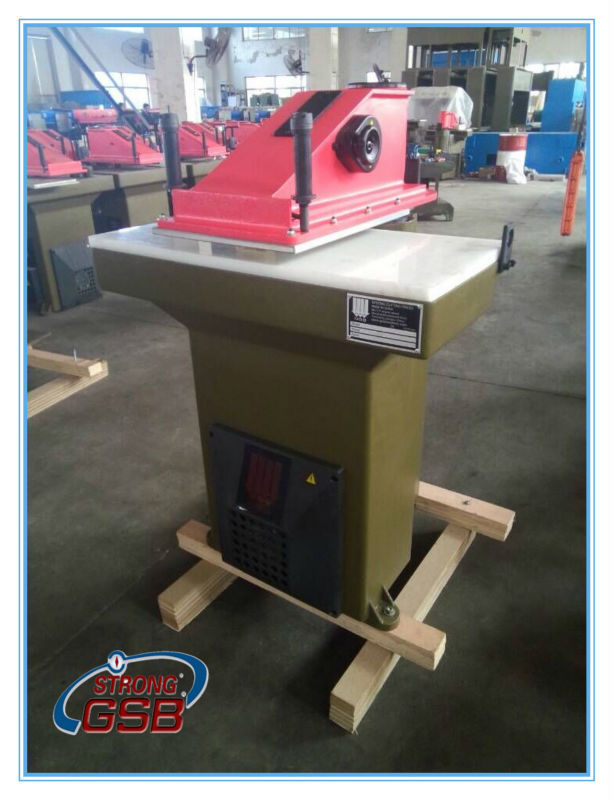

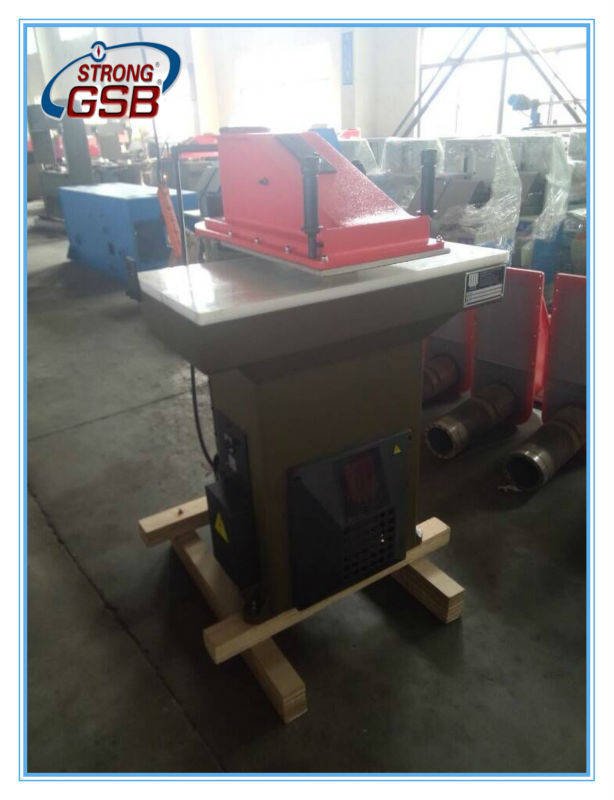

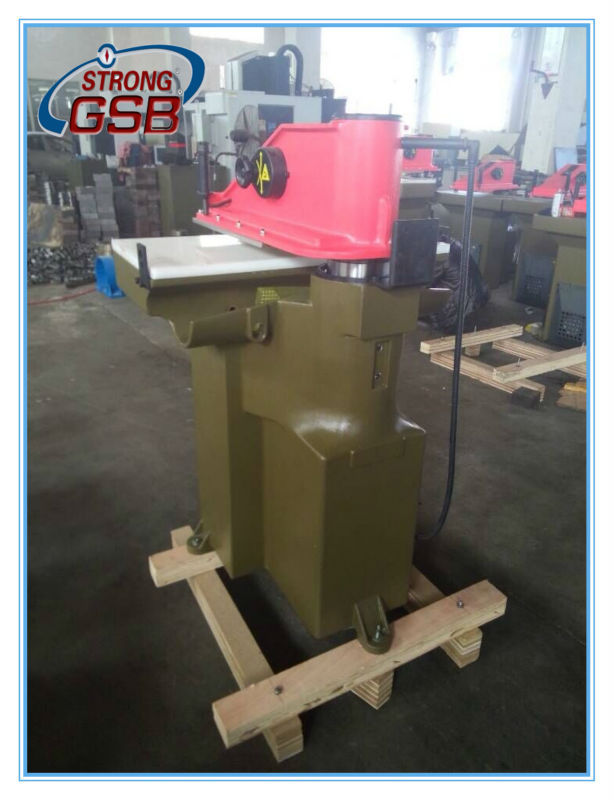

Photos:
