| 電圧: | 380ボルト | 原産地: | 中国(本土) | 銘柄: | dashun | 条件: | 新しい | モデル番号: | DS-818-520L/-620Lバンドナイフ分割機 | 重量: | 710キログラム/775キログラム | 力(W): | 4.3kw | タイプ: | 分裂機械 | 保証: | 1年 | 認証: | ce、gsb | 次元(L*W*H): | 170*110*125 (センチ)/179*110*125 (センチ) | 提供される売り上げ後のサービス: | 提供される海外サービス無し | モータ電源: | 4.13KW | 一般的な電源: | 4.3kw | 電源電圧: | 380ボルト | 電源相: | 3相 | マックス。分割幅: | 520ミリメートル/620ミリメートル | 分割厚さ: | 0.2〜8ミリメートル | 周波数: | 50 ｈｚ | パッケージ重量: | 780キログラム/855キログラム | 外形寸法(lwh): | 170*110*125 (センチ)/179*110*125 (センチ) | パッケージ寸法(lwh): | 178*124*143 (センチ)/187*124*143 (センチ) |
包装
| 包装: | 木製 |

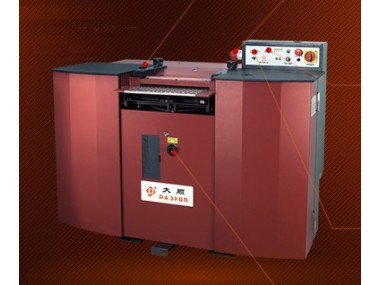

DS-818-520/-620 Band Knife Splitting Machine
Used for layer splitting of shoes, bags and cases, which is highly efficient and accurate.
Features:
1. The thickness of required leather sheets is adjusted by hand-wheel.
2.When any gate or cover is not closed to right position, or the charging basket is overfilled, the dynamo cannot start up and the red light will flash to alarm, which is highly secure.
3.The thickness of leather adopts accurate and convenient digital display. The minimum thickness can reach 0.2mm and the sheet precision is 0.05mm.
4.Charging rate is adjustable as required and adopts digital display.
5.The knife grinding abrasive wheel is adjusted by hand-wheel. The upper and lower abrasive wheels grind synchronously, and the knife can restore position during the course of grinding, which makes grinding geometric shape remains unchanged.
| Main Technical Parameters: | |
| Motor Power | 4.13KW |
| General Power | 4.3KW |
| Power Supply Voltage | 380V |
| Power Supply Phase | 3-phase |
| Frequency | 50HZ |
| Max. Splitting Width | 520mm/620mm |
| Splitting Thickness | 0.2-8mm |
| Splitting Precision Allowance | 0.1mm |
| Machine Net Weight | 710KG/775KG |
| Package Weight | 780KG/885KG |
| External Dimensions | 170*110*125(cm)/179*110*125(cm) |
| Package Dimensions | 178*124*143(cm)/187*124*143(cm) |
Package: wooden case
