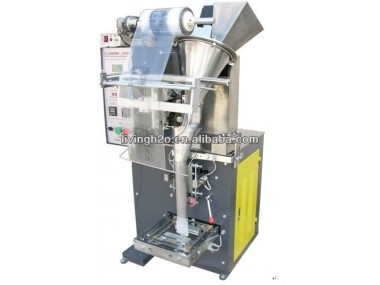

Powder Packaging Machine

Features:

This aircraft is suitable for medicine, food ,chemical industry, agricultural chemicals side and so on surface small bag packing. For example; The bread flour, the medicinal powder, the powdered milk, nutrition belt mat erials and so on food, seasoning, wettability agricultural chemicals powder move the packing from, uses the screw rod to squeeze out the type yummy treats to be possible to cause the powdery material to wrap the load to be more precise. This aircraft completes the measurement, the system bag, sufficient to fill, (gasification) automatically, to seal gathers,(hits code), to add Yi sikou,to shut off(the margin way: The zigzag margin, easy to rip the margin), to count continuously to the product outputs disposable conpletes.

Technical Parameter

Name: JYX-360-2

Function in both English and Chinese LCD display, digital temperature control

Packing speed: 40-50bags/min

Power source: 200V/50HZ

Measuring method: Screw

Width of bag: 100-160mm

Length of bag: 100-250mm

 Power: 2.2KW

Weight: 300kg

Packing form: 3-Side

 Filling range: 100-200G

Product advantages :

1.This form fill seal machine is with high precision structure for simple and easy operation and repair.

2.Two synchronous belt device and servomotor film transporting system, makes the film move stably and form bag smoothly.

3.Two independent sealing cylinders design, makes the excellent sealing and nice sealing stripes.

4.imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.

5.Adopt external film feeding mechanism. Film setting will be more easy and quick.

6.Multi-auto warning protection function to minimize loss.

7.The stainless steel metering hoppers are easy assembly and dismantling and convenient to cleaning.

8.This VFFS machine can finish from feeding,measuring,date printing,bag making,filling,inflating,sealing,cutting and counting in one operation.

9.Different bag shapes are available according to customers’ requirement

Packing sample:
