| 原産地: | 中国(本土) | 銘柄: | 輝き露 | ドライブの種類: | 電気 | 適用: | 機械とハードウェア | モデル番号: | Xg-100j/( 450b/h) | 包装材料: | 木 | 自動等級: | 自動 | 包装タイプ: | ボトル | タイプ: | 蓋付け機 | 条件: | 新しい | 力: | 6.4kw | 生産能力: | 450b/h | 入力電力: | 6.4kw | 瓶仕様( mm): | 270*490*56mm | キャップ仕様: | 58*40mm | エアコンプレッサの使用圧力: | P≥0.6mp | 洗濯容量ボトル: | 450buckets/h | 充填容量: | 450buckets/h | 外寸: | 3550960x1550( mm) | G。 w。( kg): | 600kg | タイプ: | 充填機 |
包装
| 包装: | 木製ケース |

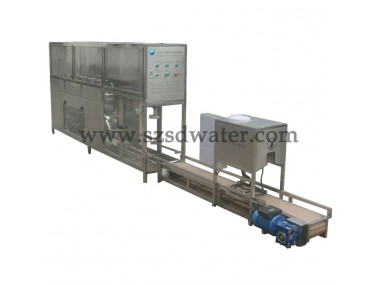

5gallon drinking bottle water washing&filling&capping system machinery XG-100J/(450B/H)
filling machine for 5gallon bottle,450BPH filling machine,washing&filling&capping machine,automatic filling plant line, water filling machines china , water bottle manufacturer
Washing process:
Bottles on conveyor are controlled by counting sensor and delivered to rinsing seats. Stop cylinder, ratchet and bottle clip work to upturn bottles 1800 C into rinsing seats, water pump starts to spray inside and then bottles return through the circle.
Filling process:
Bottles on conveyor are controlled by counting sensor and delivered to filling seats, then up-loading cylinder works to lift bottles from conveyor and bottle clips make bottles fixed. Filling valve falls by pressure cylinder and filling pump works. Filling time, volume are set by PLC and can be adjusted by touch screen.
Spec.
Model No | XG-100J/(450B/H) | |
Production capacity | 450B/H | |
Power | 220±5% 50Hz | |
380±5% 50Hz | ||
Input Power | 6.4KW | |
Bottle specification(mm) | φ270×490×56 | |
φ230×415×56 | ||
Bottle capacity | 5 gallons or 3 gallons | |
Cap specification | φ58×40 | |
Working pressure of the Air compressor | P≥0.6MP | |
Bottle washing capacity | 450Buckets/H | |
Filling capacity | 450Buckets/H | |
Outer dimension | 3550960x1550 (mm) | |
Weight | N.W. (kg) | 500 |
G.W. (kg) | 600 | |
Bottle outlet direction | Bottle output with liner direction | |
